PVL10 and PVL10H-Parts

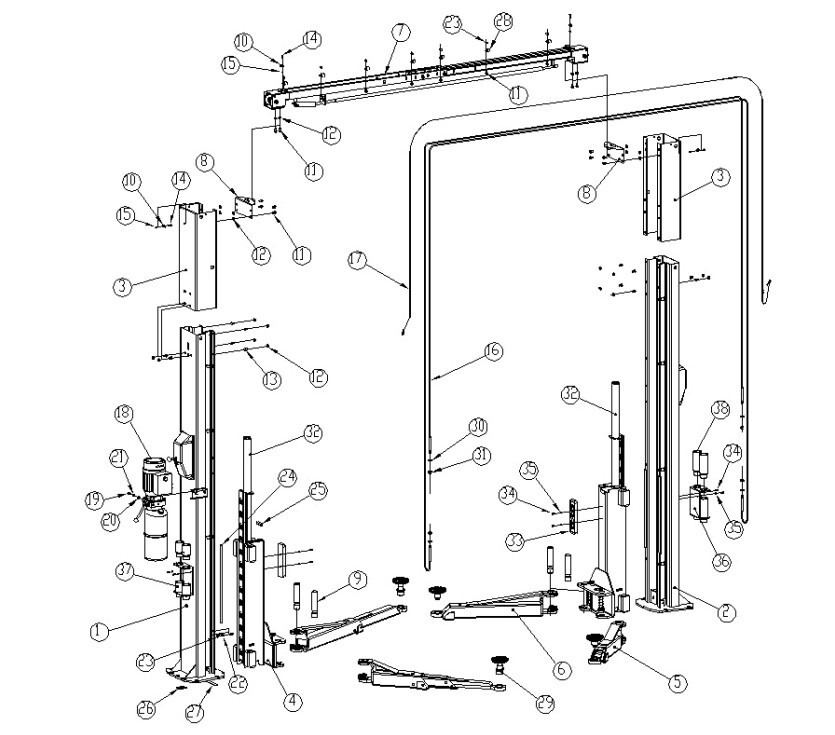

LIFT




ITEM# PART NO. DESCRIPTION
1 Z23A110000AM Power-side column assembly
2 Z23A120000AM Off-side column assembly
3a Z23A130001 Column extension L=800 (standard version)
3b Z23A130001-H1 Column extension L=1410 (H version)
4 Z23A200000 Carriage assembly
5 Z23A320000AM Short arm assembly
6 Z23A310000AM Long arm assembly
7 Z23A400000AM Overhead beam assembly
8 Z23A500101 Overhead beam support
9 Z23A500102 Arm shaft
10 Z23A502201 Safety release wire guide
11 0201136 Screw M10X20 - Purchase Parts Bag
12 0204030 Flange nut M10
13 0201137 Round head screw M10X20 - Purchase Parts Bag
14 0201144 Screw M6X25
15 0203004 Nut M6
16a Z23A501100 Equalizer cable D.8 L=9170 (standard version)
16b Z23A501100-H1 Equalizer cable D.8 L=10390 (H version)
17a Z23A502100 Safety release wire D.1.5 L=8000 (standard version)
17b Z23A502100-H1 Safety release wire D.1.5 L=9200 (H version)
18 AL2850 Hydraulic power unit 220V/60Hz/1PH 1.5KW
19 0201046 Screw M10X20
20 0205011 Washer D.10
21 0208007 Locking washer D.10 - Purchase Parts Bag
22 Z23A503200 Pipe U bolt
23 0203032 Nut M10
24 Z23A510101AM Long rubber protection
25 Z23A510102 Short rubber protection
26 Z23A510201 Nylon shim 1
27 Z23A510202 Nylon shim 2
28 Z23A503100 Hose clamp
29 Z23A313000AM Arm adaptor
30 0205017 Washer D.14
31 0204006 Self-locking nut M14
32 Z23AY20000 Hydraulic cylinder
33 XSZ-8-802-2 Square rubber protection
34 0202032 Screw M6X16
35 0205006 Washer D.6
36 Z23A601102 Pad extension holder
37 Z23A601200 Pad extension H.80
38 Z23A601300 Pad extension H.155





 POWER-SIDE COLUMN




ITEM# PART NO. DESCRIPTION
1 Z23A110100AM Column
2 Z23A110001T Cable pulley
3 0211014 Seeger D.15
4 Z23A110002 Anti-derailment safety plate
5 0206031 Screw M6X10
6 Z23A110005 Nylon wire pulley
7 0211015 Seeger D.8 - Purchase Parts Bag
8 Z23A110007 Shock absorber
9 Z23A110006 Safety hook
10 0213052 Elastic pin 6X40
11 Z23A110004 Hook pin
12 Z23A110200 Cam
13 0205023 Washer D.24
14 Z23A110009 Return spring 2
15 Z23A110008 Return spring 1
16 0201174 Shoulder bolt 8X25
17 Z23A110010 ABS plate
18 0215017 Lever knob M10X33 - Purchase Parts Bag
19 Z23A504101 ABS cover
20 0206034 Screw M8X10 - Purchase Parts Bag
21 0205008 Washer D.8 - Purchase Parts Bag
22 0203032 Nut M10 - Purchase Parts Bag
23 Z23A110003 Safety release lever
24 0204024 Flange Nut M6
25 0210079 Bush SF-1/1920







 OFF-SIDE COLUMN




ITEM# PART NO. DESCRIPTION
1 Z23A110100AM Column
2 Z23A110001T Cable pulley
3 0211014 Seeger D.15
4 Z23A110002 Anti-derailment safety plate
5 0206031 Screw M6X10
6 Z23A110007 Shock absorber
7 Z23A110006 Safety hook
8 0213052 Elastic pin 6X40
9 Z23A110004 Safety pin
10 0204024 Flange Nut M6
11 Z23A110200 Cam
12 0201174 Shoulder bolt 8X25
13 0205023 Washer D.24
14 Z23A110009 Return spring 2
15 Z23A110008 Return spring 1
16 Z23A504101 ABS cover
17 0206034 Screw M8X10 - Purchase Parts Bag
18 0205008 Washer D.8 - Purchase Parts Bag
19 0211015 Seeger D.8 - Purchase Parts Bag
20 Z23A110005 Nylon wire pulley
21 0210079 Bush SF-1/1920

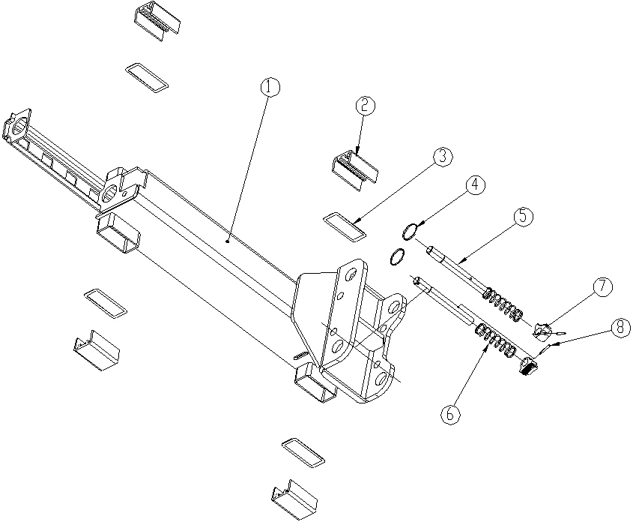

 CARRIAGE




ITEM# PART NO. DESCRIPTION
1 Z23A210000 Carriage
2 Z23A200001 Nylon slider
3 Z23A200002 Slider shim
4 Z23A200006 Safety release ring
5 Z23A200004 Safety release pin
6 Z23A200005 Spring
7 Z23A200003 Toothed block
8 0213052 Elastic pin 6X40

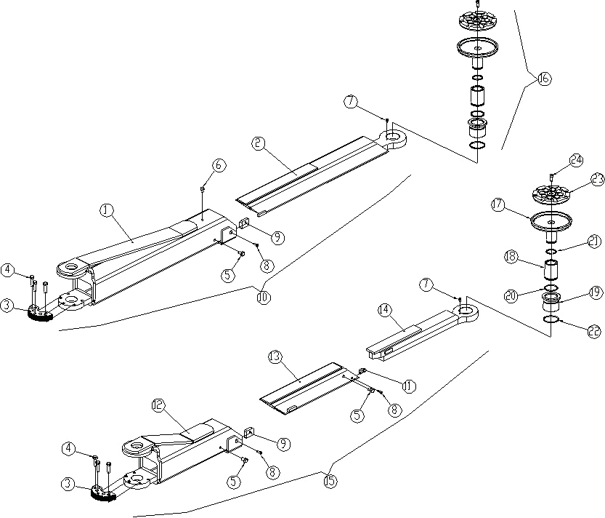

 ARMS + ADAPTOR




ITEM# PART NO. DESCRIPTION
1 Z23A311000AM Long arm frame
2 Z23A312000AM Long arm extension
3 Z23A310001 Anti-rotation gear
4 0201050 Screw M10X35 - Purchase Parts Bag
5 0201060 Screw M10X16
6 0201022 Screw M8X12
7 0202020 Screw M5X8
8 0202032 Screw M6X16
9 Z23A324001 Shim
10 Z23A310000AM Long arm assembly
11 Z23A324001 Shim
12 Z23A321000AM Short arm frame
13 Z23A322000 Short arm middle extension
14 Z23A323000AM Short arm outer extension
15 Z23A320000AM Short arm assembly
16 Z23A313000AM Arm adaptor
17 Z23A313100AM Pad support
18 Z23A313001 Inner thread bush
19 Z23A313002 Outer thread bush
20 0212034 Seeger D.42
21 0212035 Seeger D.32
22 0309091 O-ring 45X2.65
23 Z23A313202 Round rubber pad
24 0202032 Screw M6X16

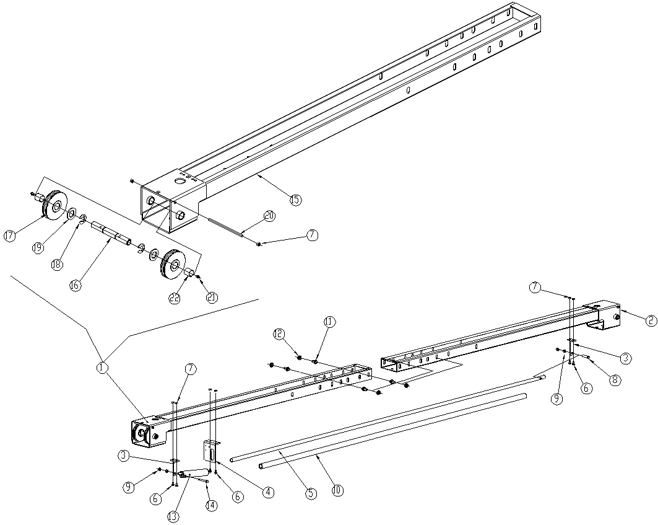

  OVERHEAD BEAM




ITEM# PART NO. DESCRIPTION
1 Z23A410000AM Left beam assembly
2 Z23A420000 Right beam assembly
3 SYJ30-17-02M1 Support 1
4 2L-1-07 Support 2
5 Z23A400001AM Crush safety bar
6 0206040 Screw M6X12 - Purchase Parts Bag
7 0203004 Nut M6
8 0201033 Screw M8X40
9 0203008 Nut M8 - Purchase Parts Bag
10 Z23A400002 Crush safety bar cover
11 0201136 Screw M10X20 - Purchase Parts Bag
12 0204030 Flange nut M10 - Purchase Parts Bag
13 SP-1430-14 Mercury switch
14 0201020 Screw M8X55
15 Z23A411000AM Left beam
16 Z23A410001 Pulley shaft
17 Z23A110001T   Cable pulley
18 0211014 Seeger D.15
19 0205023 Washer D.24
20 Z23A410002 Anti-derailment safety pin
21 0215041 Greaser M6X1 - GB/T1152
22 0210079 Bush SF-1/1920

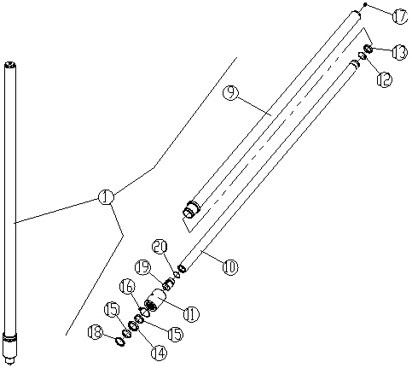

 HYDRAULIC CYLINDER




ITEM# PART NO. DESCRIPTION
1 Z23AY20000 Hydraulic cylinder
9 Z23AY22000 Cylinder liner
10 Z23AY21002 Cylinder shaft
11 Z231AY1800 Cylinder cover
12 0212036 Seeger D. 48
13 0305042 Seal support ring 44X9.5X3
14 0310033 Seal 48X60X11
15 0315043 Seal 48X9.5X2.5
16 0309087 O-ring 56X3.55
17 0305017 Bleeder 1/8
18 0311023 Scraper 48X56X5/6.5
19 Z23AY11001 Shaft head
20 0309088 O-ring 36.5X2.65









  HYDRAULIC LINES






ITEM# PART NO. DESCRIPTION

2 Z23AY20000 Hydraulic Cylinder
3 0303021 T-Fitting 1/4 (AB-04)
4 0303061 Straight Fitting 1/4 (1B-04-T1)
5 0313001 Washer 1/4 (BS/A13.7/G1/4”)
6 0307021 Parachute valve 1/4 (V389201A10 G1/4)
7a WW3800 Hydraulic hose 1/4 L=3800 (Standard version)
7b WW4410 Hydraulic hose 1/4 L=4410 (H version)
8a ZZ5090 Hydraulic hose 1/4 L=5090 (Standard version)
8b ZZ5700 Hydraulic hose 1/4 L=5700 (H version)
