Product Description

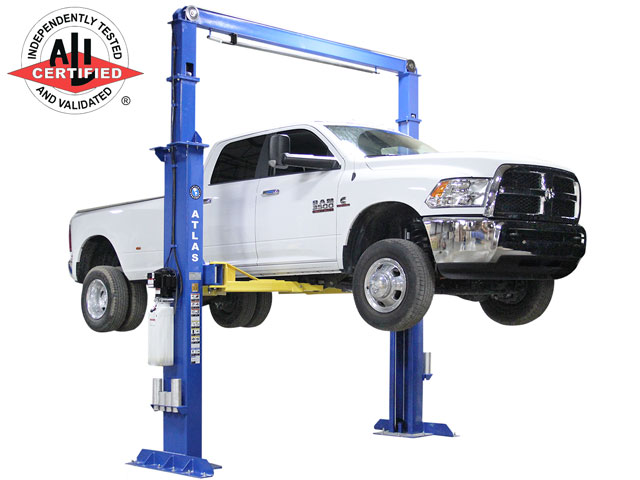

This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two year limited warranty.
Features
- 5 Year Structural & 2 Year Hydraulic Warranty
- 15,000 lb. Capacity

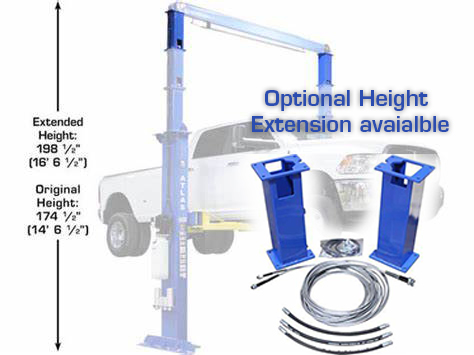

- Adjustable Height - 14' 6 1/2" or 16' 6 1/2" (With optional height extension)
- Professional grade arm lock restraint system
- Higher quality powder coating
- Dual Point Lock Release
- Truck adapter set included
- Mounting Hardware Included
- Optional Height Extension Not Included
- Shipping Weight: 2,400 LB.
Specifications
Atlas Apex 15 Specifications | |
Capacity | 15,000 lb. |
Overall Height - without height extension | 174 1/2" (14' 6 1/2") |
Height To Shut Off Bar | 164 1/4" (13' 8 1/4") |
Overall Width (With Motor) | 154 1/2" (12' 10 1/2") |
Overall Width (Without Motor) | 148" (12' 4") |
Outside Column to Outside Column | 135" (11' 3") |
Maximum Lifting Height (Without Truck Adapters) | 72 3/4" (6' 3/4") |
Maximum Lifting Height (With Truck Adapters) | 87 1/2" (7' 3 1/2") |

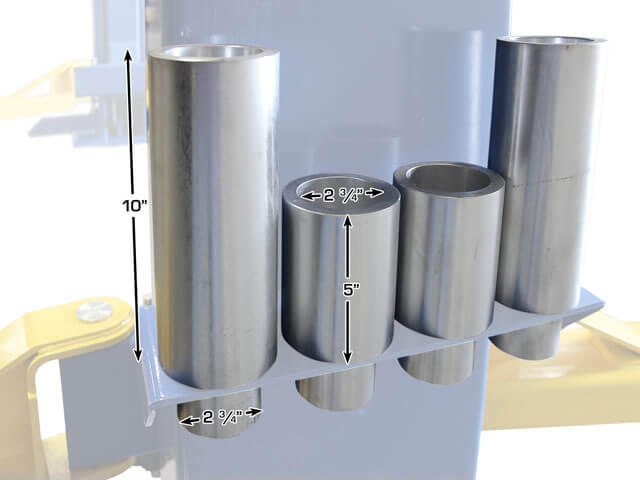

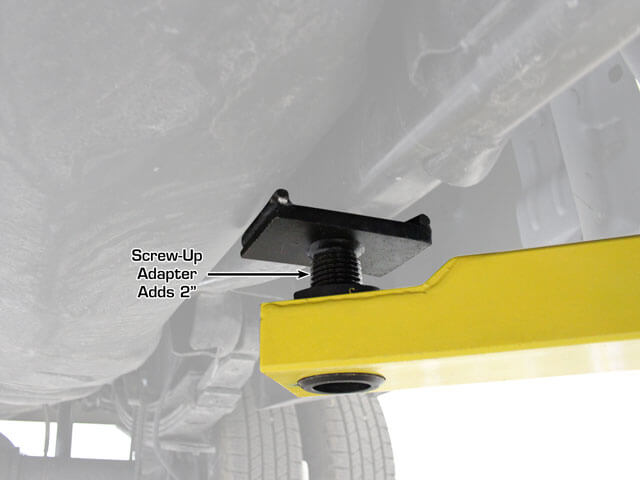

Adapter Sizes | 10" and 5" with 2 3/4" peg |
Minimum Pad Height | 5 3/4" |
Clearance Between Columns | 119 1/4" (9' 11 1/4") |
Drive Thru | 107 1/2" (8' 11 1/2") |

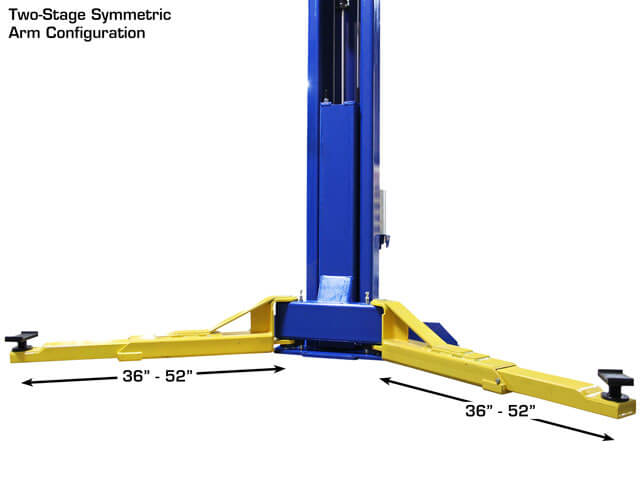

Arm Length | 36" - 52" (3' - 4' 4") |

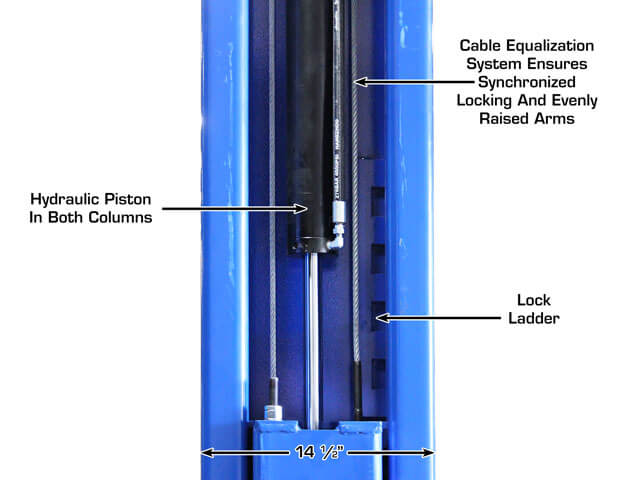

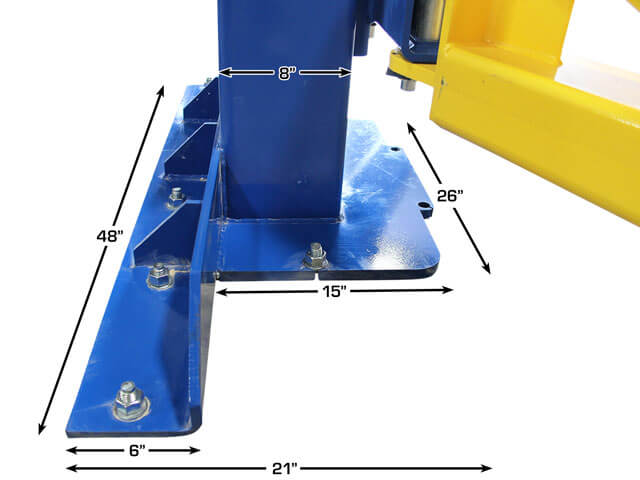

Column Size | 14 1/2" x 8" |
Thickness of Steel | 8mm |
Cable Diameter | .375" |
Motor/Electrical Requirement | 220 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended |
Oil Requirement | 3-5 Gallons AW32/AW46 |
Shipping Weight | 2,400 lb. |
Warranty
"This item is warranted for five (5) years on structural components, two (2) years on hydraulic cylinders, and one (1) year on electric or air/hydraulic power units from the invoice date. Wear items are covered by a 90-day warranty. Our LIMITED warranty policy does not include a labor warranty. ATLAS Automotive Equipment is offered at highly competitive prices, allowing us to provide exceptional value. To maintain these price advantages, ATLAS does not send technicians into the field for equipment repairs. We understand that the buyers of our line of equipment are mechanically inclined or have employees that are mechanically inclined to perform essential repair services and/or maintenance. We also have a list of service technicians who can come to your location at the customer’s expense. NOTE: All warranty claims must be pre-approved by the manufacturer to be valid. The manufacturer shall repair or replace, at their option, for this period, those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used, and maintained in accordance with the manufacturer’s installation, operation, and maintenance instructions. This warranty applies to the original purchaser only and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but does not cover normal maintenance or adjustments, damage, or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted on the manufacturer’s products. THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, AND ALL SUCH IMPLIED WARRANTIES ARE EXPRESSLY EXCLUDED. The remedies described are exclusive, and in no event shall the manufacturer, nor any sales agent, distributor or other company affiliated with it or them, be liable for special, consequential, or incidental damages for the breach of or delay in the performance of this warranty. This includes, but is not limited to, loss of profit, rental or substitute equipment, or other commercial loss. The warranty shall be governed under the laws of Canada and shall be subject to the exclusive jurisdiction of the Province or Territory in which the equipment is sold into and shipped to. Prices: Prices and specifications are subject to change without notice. All orders will be invoiced at prices prevailing at the time of shipment. Prices do not include any local, Provincial, or Federal taxes where applicable. All taxes are subject to the rate at where the Atlas products are sold into or shipped to. Returns: Products may not be returned without prior written approval from the manufacturer. Due to the competitiveness of the selling price of these lifts, this warranty policy will be strictly administered and adhered to."Product Videos
Videos Hide Videos Show Videos
Custom Field
Product Reviews
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload
it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts.
If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
