Product Description
Atlas Center Post Adapter:
The Atlas adjustable center post adapter (CPA) was designed to eliminate the possibility of jaw damage to automotive rims and increase the wheel capacity of just about any wheel clamp tire changer.
The expensive custom wheels found on many of today’s vehicles cannot be clamped from the inside of the wheel and must be clamped from the “outside in”. When custom wheels are clamped in this manner, the metal jaws can easily be damage the rim.
Wheel clamp tire changers use a powerful side bead breaker that allows the operator to "break the bead" of the custom wheels without damage. The side bead breaker allows the operator to guide the bead breaking shoe to touch only the “rubber sidewall” and not the metal rim.
Once the bead is loosened, the wheel is secured to the top of the turntable with the moveable jaws. Many tire changers have a limited clamping range due to the size of the sliding jaw cylinders. There are optional “slide on” jaw adapters to increase or decrease the jaw clamping range of most tire changers. These adapters are expensive and still depend on the metal jaws to clamp the outside of the rim.
The Atlas center post adapter allows the operator to secure almost any diameter of wheel to a wheel clamp tire changer without the risk of “jaw” damage.

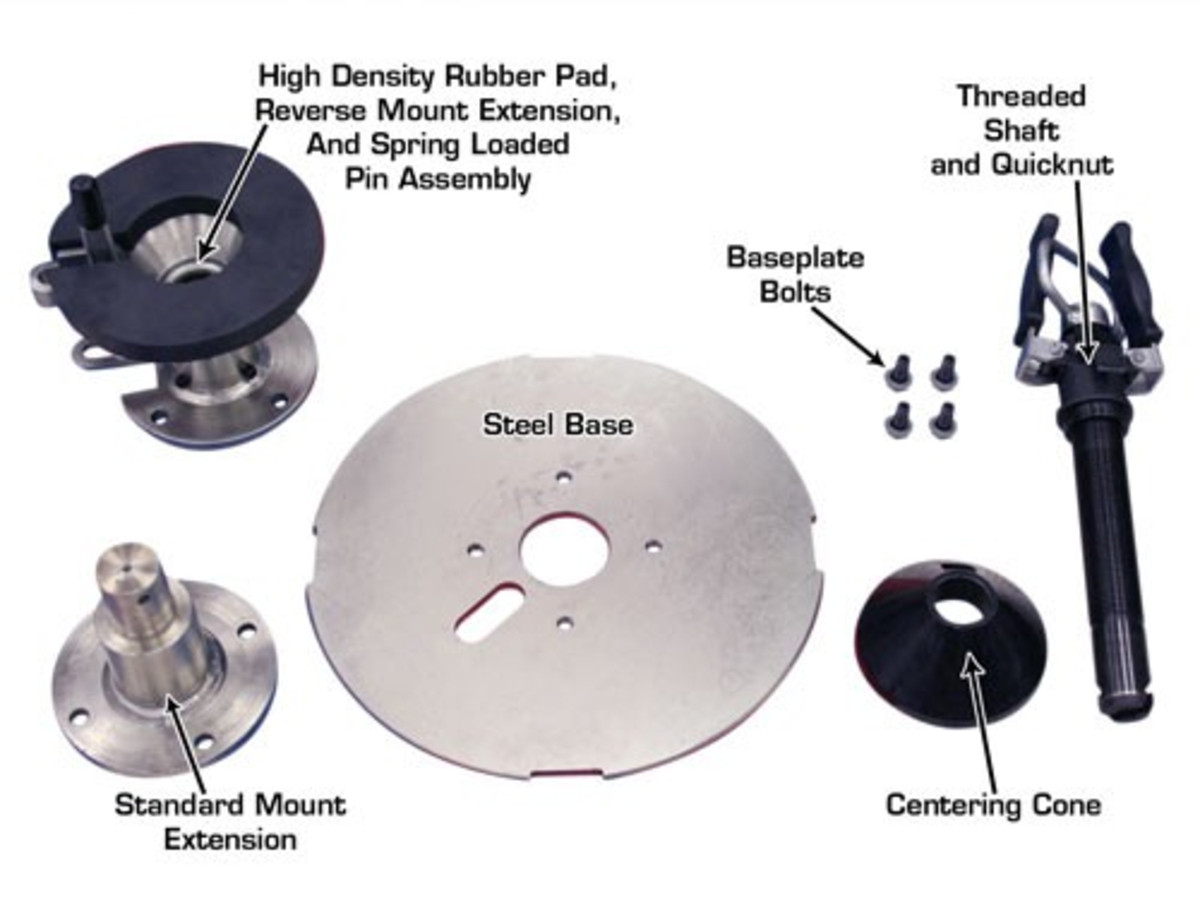

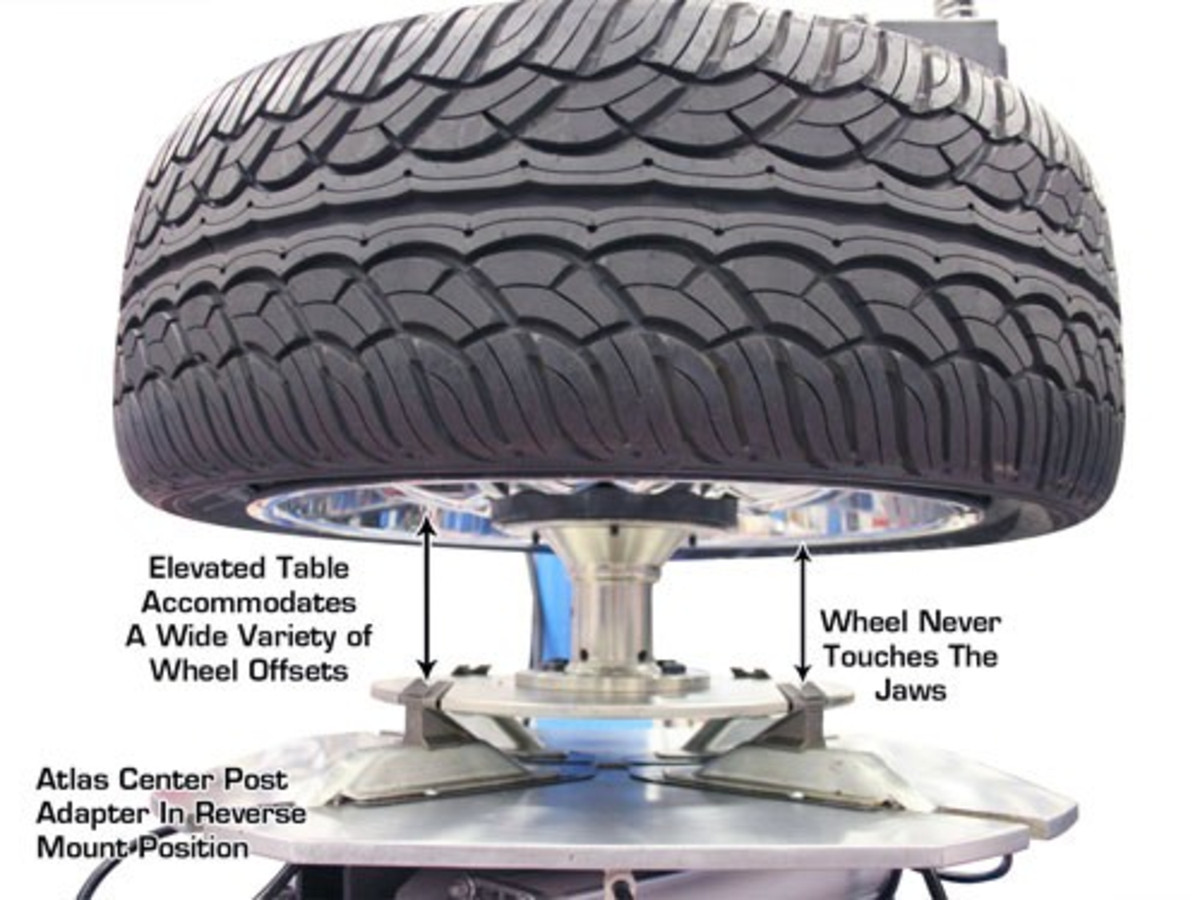

The center post adapter is held securely into place with the turntable jaws of the tire changer. The wheel (after the tire bead has been loosened) is placed onto the center post adapter’s protective surface. The adjustable positioning pin is placed through a lug hole. The non-mar cone is placed into the center hole and the threaded shaft is locked into position. The quick nut is tightened to secure the wheel and the tire is ready to be changed.
The Atlas center post adapter eliminates the risk of “jaw damage” and also INCREASES the size if wheel that can be changed, because the clamping range is not dependent on the range of the sliding jaw.
The Atlas CPA makes it possible for anyone in your shop to change decorative wheels easily and without risk of jaw damage to the edge of the rims. Composite rims or decorative rims with paper thin edges are easily mounted on the Atlas center post adapter.
If your old wheel clamp tire changer has limited jaw clamping range, invest in an Atlas center post adapter and put that old tire changer back into service. The Atlas center post adapter allows 30 inch rims to be changed on tire changers with a jaw clamping range of only 20 inches. If you can position your mount/demount head over the edge of the rim…you can probably change the tire mounted on that rim. The Atlas CPA is the perfect choice for those shops that do not want to invest in a larger tire changer, but want the capabilities of changing the new larger decorative rims found on many vehicles.
Atlas Low Profile Adapter:
The Low Profile Adapter has been added to the Atlas CPA package to “lower the turntable height” of reverse mount wheels in relationship to the mount/demount head. Reverse-mount wheels as wide as 10” are no problem to mount and demount when used with the Low Profile Adapter. The Atlas CPA allows the operator to maximize all the benefits of a wheel clamp tire changer…without risk of the wheel clamps damaging the rims. The wheel clamps of the tire changer never touch the expensive rim. The Atlas CPA is the perfect option for your Atlas wheel clamp tire changer and can also be used with just about any wheel clamp tire changer to increase the rim size capabilities.
Warranty
This item has a one (1) year LIMITED warranty. Atlaså¬ Automotive Equipment warrants the equipment to the original purchaser against defects in material or workmanship under normal use for a period of one year from the date of purchase. This warranty shall be limited to the replacement of materials or parts found defective, at the discretion of Atlaså¬ Automotive Equipment and/or its authorized distributors. This limited one (1) year warranty DOES NOT apply to normal wear items (turntable jaws, belts, gauges, plastic jaw protectors, etc.). The limited one (1) year warranty does not include a labor warranty. Warranties do not apply to items that have been abused or misused. Returned goods must be authorized to be returned (in writing) by Atlaså¬ Automotive Equipment and/or an authorized distributor and must be prepaid to a designated location. All returns may be subject to a 15% handling and restocking charge. Returned goods must be in like-new condition complete with warranty and original shipping papers. CustomerÌ¥s Responsibilities å´ Shall ensure that all air operated components are properly maintained å´ Shall ensure components are powered by well-lubricated and moisture-free compressed air (if a suspected defective part has not been properly lubricated, it will not be covered under warranty) å´ Shall establish procedures to periodically maintain and inspect the equipment å´ Shall ensure that your wheel balancer is protected by a surge protector å´ Shall ensure that all equipment shall have adequate amperage service THIS WARRANTY IS EXCLUSIVE AND IS LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, AND ALL SUCH IMPLIED WARRANTIES ARE EXPRESSLY EXCLUDED. THE REMEDIES DESCRIBED ARE EXCLUSIVE AND IN NO EVENT SHALL THE MANUFACTURER, NOR ANY SALES AGENT OR OTHER COMPANY AFFILIATED WITH IT OR THEM, BE LIABLE FOR SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES FOR THE BREACH OF OR DELAY IN PERFORMANCE OF THIS WARRANTY. THIS INCLUDES, BUT IS NOT LIMITED TO, LOSS OF PROFIT, RENTAL OR SUBSTITUTE EQUIPMENT, OR OTHER COMMERCIAL LOSS.Product Videos
Custom Field
Product Reviews
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload
it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts.
If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
