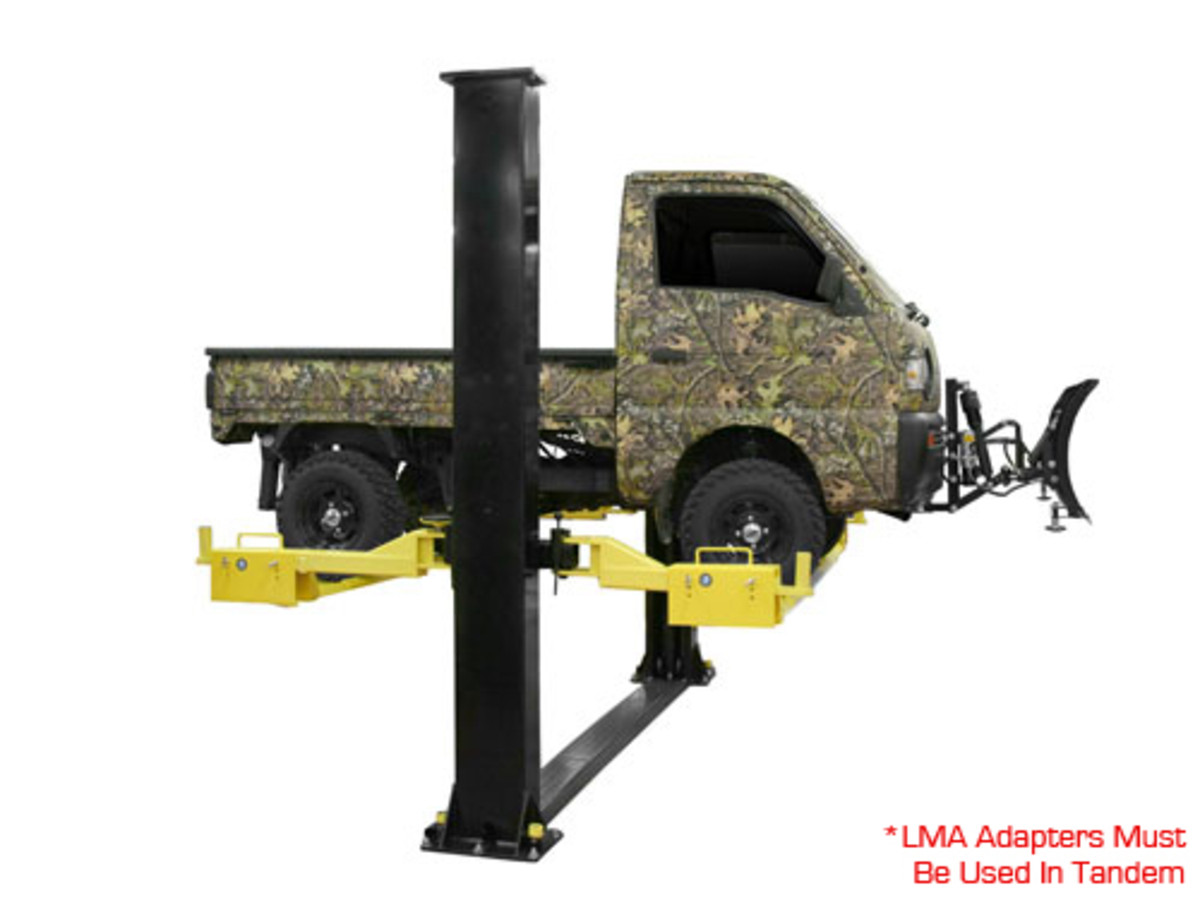

The Atlas LMA (lawn mower adapter) will transform most two post above ground lifts into an easy to use lawn mower lift, golf car lift, snowmobile lift, ATV lift, or a small sports car lift.
The Atlas LMA adapts easily to most two post above ground lifts that are equipped with a symmetric arm design. The LMA is adjustable in width to accommodate the many different arm configurations found on two post lifts. The Atlas LMA can be used in an infinite amount of wheel base configurations (between 32" and 90") to allow the operator great flexibility in lifting different pieces of lawn service equipment with varying wheelbases.
Most of the specialty lawn mower lifts and golf cart lifts are just variations of the economical automobile lift. Golf course maintenance equipment distributors are demanding artificially high prices for specialty above ground lifts that are just subtle adaptations of the very affordable two post above ground car lifts.
When properly installed, the Atlas LMA can transform most two post above ground lifts into an economical four wheel support lift that will accommodate wheel bases from 32" to 90". The Atlas LMA plates can be positioned ONLY on two post lift arms that offer symmetric arm configuration.
Please read the following before buying or using the Atlas LMA:
The Atlas LMA is designed to work well with most two post above ground lifts with symmetric arms. There are many factors that will determine the SAFE weight capacity of the Atlas LMA on YOUR lift. Atlas Automitive Equipment Sales recommends the following LMA guidelines for the SAFE lifting of all specialty vehicles or lawn service equipment.
Many above ground two post lifts have been OVER RATED by certain lift distributor. Your 9,000 LB or 10,000 LB two post may be (in reality) only an 8,000 LB. two post lift.
For the purpose of illustration, let us assume that you have an REAL 8,000 LB two post lift.
This 8,000 LB capacity translates into an important fact about above ground two post lifts:
An 8,000 LB two post lift has four lift arms that are capable of lifting (and safely supporting) 2,000 LB. each. If you are lifting an 8,000 LB. vehicle on an 8,000 LB. lift, then the weight of the vehicle needs to be evenly distributed on each of the four lifting points.
This same principle is applied when using the Atlas LMA as an accessory on your lift.
You must distribute the weight as evenly as possible.
First, you must consider the weight of the LMA (600 LB) and deduct the 600 LB. from the lifting capacity of your lift. Your 8,000 LB. lift (with a properly positioned LMA) has a new lifting capacity of 7400 LB.
The closer the LMA plate is positioned to the vertical columns, the greater the lifting capacity of the LMA. As the LMA adapter plates are moved farther apart (toward the lift pads of the lift), the lifting capacity of the LMA is reduced.
We recommend that the lift operator DEDUCT 3,000 LB. lifting capacity of the above ground lift when the two LMA plates are spaced at the furthest wheelbase position (90"). When the LMA plates are positioned at the closest wheel base position (32"), then the weight capacity of the above ground lift with the attached LMA should be DECREASED by 2,000 LB.
If you are using an 8,000 LB. two post lift, and you have the wheelbase dimensions set at 32", then the NEW lifting capacity of the lift would be 6,000 LB. If you position the LMA plates so that the wheelbase is 90", then the NEW lifting capacity would be 5,000 LB.
If you are lifting a mower (or other vehicle) that is extremely heavy on one end, then the operator should position the LMA plate supporting the "heavy" end closer to the vertical column and extend the opposite LMA plate (supporting the "lighter" end) further out on the lift arm to accommodate the necessary wheelbase.
|Lawn Mower Adapter (LMA) Specifications|
|Capacity||Up To 5,000 lbs. *|
|Adjusts In Width||8' - 11'|
|Wheel Base||32" - 90" *|
|Wheel Well Width||12"|
|Thickness Of Steel||1/4" (2 Gauge)|
|Shipping Weight||600 lbs.|
|Will Fit Over Symmetric Lift Arms With Width Up To 5-1/2"|
|LMA Consists Of Two Wheel Platforms. Direct lift HR800 Shown Is Not Included.|
|* MAY VARY DEPENDING ON LIFT AND WEIGHT DISTRIBUTION. |
THE LONGER THE WHEEL BASE OF THE VEHICLE TO BE LIFTED;
THE LOWER THE LIFTING CAPACITY OF THE LMA.
|* LMA SHOWN ON DIRECT LIFT HR8000. MAY REQUIRE BLOCKS AND/OR SHIMS AT |
DIFFERENT POSITIONS ON LIFT ARMS TO KEEP WHEEL PLATFORMS STABLE AND LEVEL.
WarrantyAtlas Automotive Equipment of CANADA and some Atlas Two Post and Four Post Vehicle Lifts weight capacity models 8,000 lbs. through 12,000 lbs. are warranted for (5) years on structural components and (1) year on hydraulic power units and cylinders from invoice date. NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID. Complete Warranty and Legal Terms All Atlas Automotive Equipment of CANADA products are warranted to the original owner only. Atlas Automotive Equipment of CANADA two and four post lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 1 year from invoice date. All other lifts and accessories are warranted for 1 year from invoice date on structural components, hydraulic power units, and cylinders. Atlas Automotive Equipment of CANADA shall replace those parts returned to the factory which prove upon inspection by Atlas Automotive Equipment of CANADA to be defective. Atlas Automotive Equipment of CANADA shall not pay for costs of ground transportation of said parts and/or no labor for replacement of said parts. Registration of the lift is required to receive the warranty coverage. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Atlas Automotive Equipment of CANADAâ€™s specifications set forth in the installation, operation and maintenance instructions. The remedies described are exclusive and in no event shall Atlas Automotive Equipment of CANADA or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. PLEASE NOTE: Registration of the vehicle lift is required to receive the warranty coverage. This warranty does not apply to the following: 1. Commercial Applications. 2. Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components. 3. Normal maintenance and adjustments as required by the ownerâ€™s manual. 4. Failure to follow installation and operation instructions or user neglect or abuse. 5. Damage caused by corrosion of any kind. 6. Damage to components incurred during transportation or unloading. 7. Damage caused by improper lifting or overloading. 8. Any lift that has been altered from the original design or improperly repaired. 9. Cosmetic defects or blemishes that do not interfere with functionality of the lift.
