All Atlas portable four post lifts (9,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shop. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which lift will best suit your application, please ask your salesperson.
- ALI Certified
- 9,000 lb. Capacity
- Atlas Powder Coat Finish
- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Anchor Bolts Optional (Sold Separately)
- Four Wheel Stops (Included)
- Two Rubber Wheel Chocks (Included)
- Caster Kit with Polyurethane Wheels (Included)
- Drip Trays (Included)
- Jack Trays (Not Included)
- Perfect For Storing Or Working On Vehicles
- Shipping Weight: 2,975 lbs.
|Atlas Apex 9 Specifications|

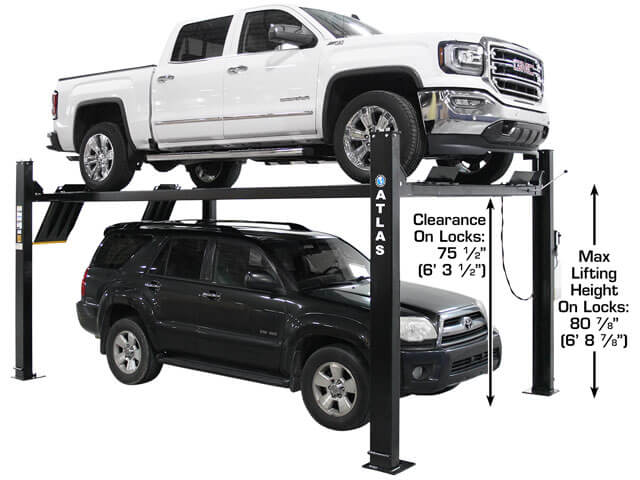

|Lifting Height To Top of Runway (On Locks)||80 7/8" (6' 8 7/8")|
|Clearance Under Runways||75 1/2" (6' 3 1/2")|
|Height of Columns (Including Nuts)||103 1/4Â" (8' 7 1/4")|
|Overall Width (Without Motor or Casters)||121 7/8Â" (10' 1 7/8")|
|Overall Width (With Motor)||133 7/8" (11' 1 7/8")|
|Overall Length without Approach Ramps Or Lock Release Bar||204 1/8" (17' 1/8")|
|Overall Length with Approach Ramps (Including Lock Release Bar)||243" (20' 3")|
|Approach Ramps||31 1/2"|

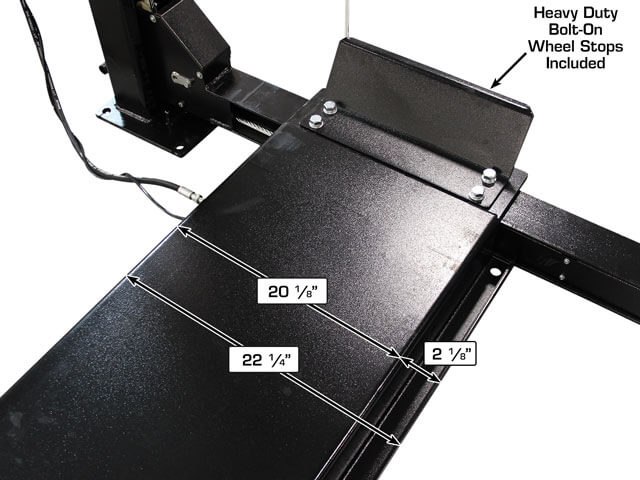

|Runway Width||20 1/8Â"|
|Runway Rail Width||2 1/8"|
|Runway Length||188 1/2" (15' 8 1/2")|
|Runway Thickness||4 7/8"|
|Width Between Runways||38 7/8"|
|Width Between Runway Rails||34 3/4"|
|Outside Runway to Outside Runway||79 1/8Â" (6' 7 1/8")|
|Size of Column||7 5/8" x 4 5/8"|

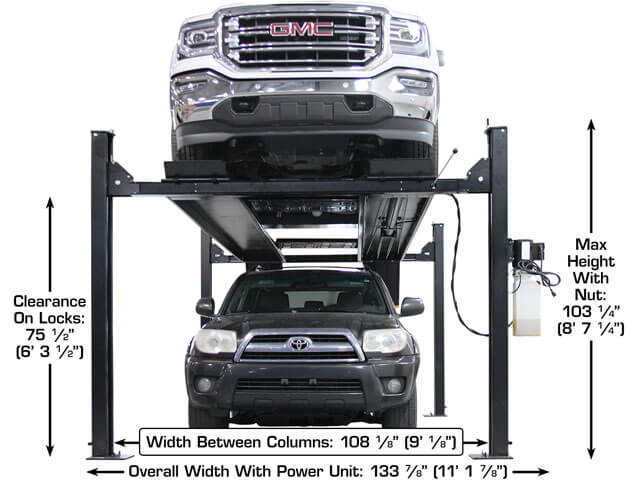

|Clearance Between Columns||108 1/8" (9' 1/8")|
|Length Between Columns||184 1/4" (15' 4 1/4")|
|Base of Column||11 5/8" x 11 5/8"|
|Maximum Wheel Base||194Â" (16' 2")|
|Drive Thru (Outside of tire to outside of tire)||97" (8' 1")|

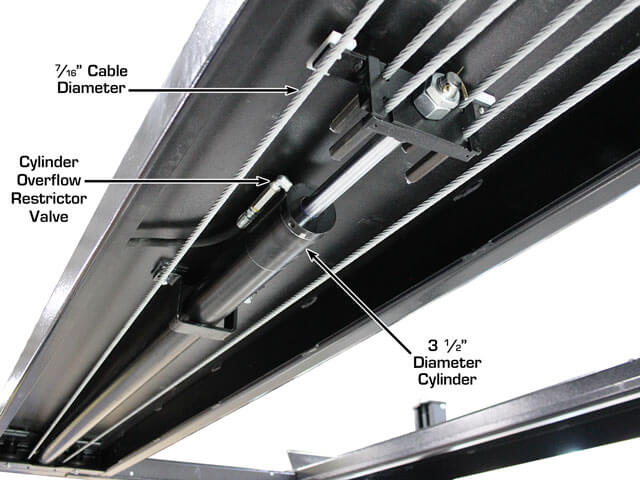

|Cable Diameter||7/16" (.4375")|
|Gauge of Steel||6 Gauge (.1875" / 3/16" / 4.75mm)|
|Motor/Electrical Requirement||110 Volt, Single (1) Phase; |
A 30 amp Breaker Is Recommended
|Oil Requirement||2.6 Gallons AW32/AW46|
|Shipping Weight||2,975 lb.|
Warranty5 Year Structural & 2 Year Hydraulic Warranty This AtlasÂ® product is warranted for five (5) years on structural components two (2) years on hydraulics, and one (1) year on electric or air / hydraulic power units effective from date of invoice. Wear items carry a 90 day warranty. Our LIMITED warranty policy does not include a labor warranty. Our products are sold at such a competitive price that Greg Smith Equipment cannot afford to send technicians into the field to repair the AtlasÂ® equipment. We assume that the buyer of our automotive equipment is mechanically inclined or has employees that are mechanically inclined to perform essential repair services and or maintenance. We also have a list of service technicians that can come to your facility/house at the customer's expense. NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.
Videos Hide Videos Show Videos
You May Also Like...
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts. If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
