Product Description

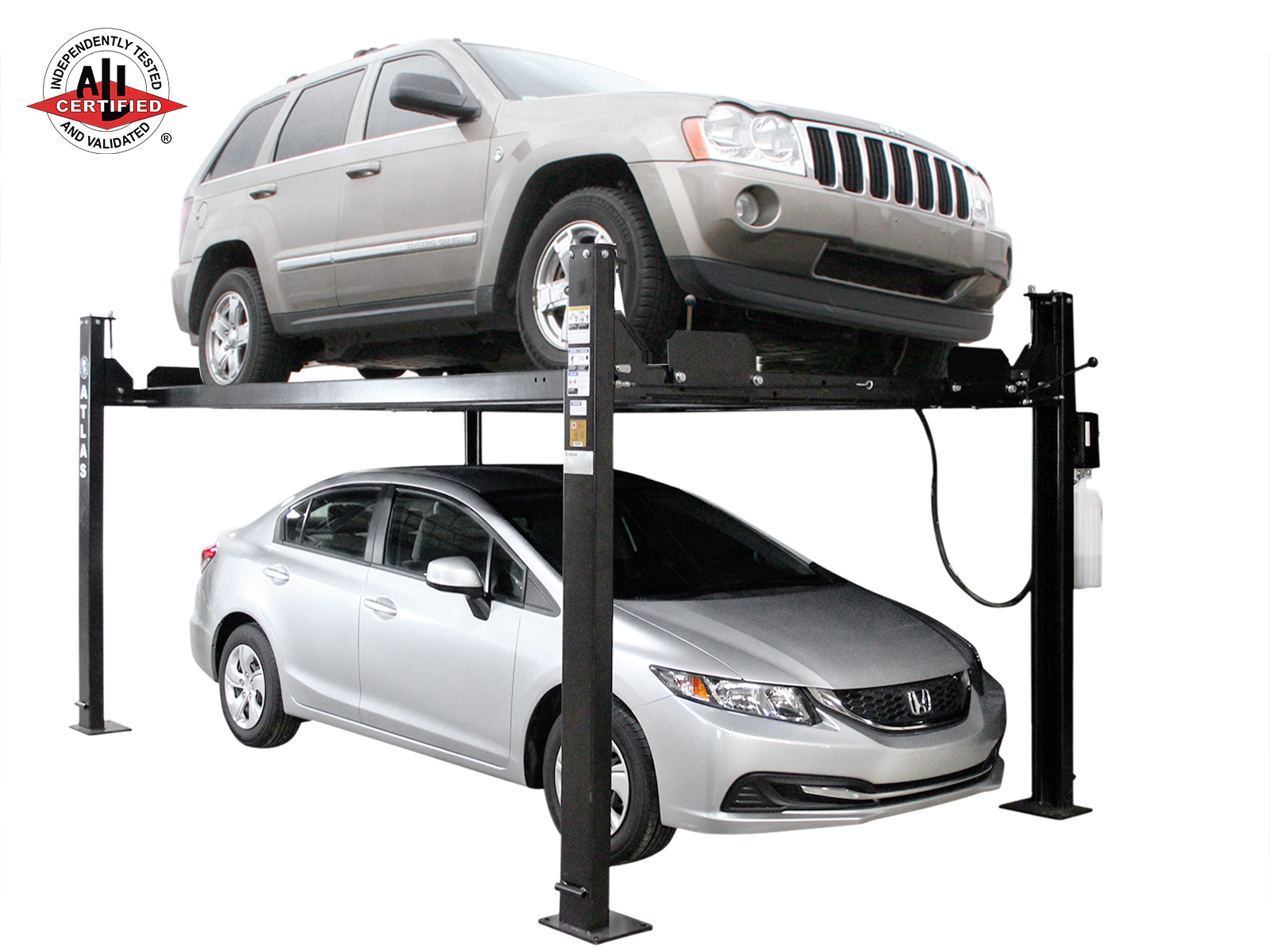

The Atlas® APEX8-EXT is an ALI Certified version of our most popular 4-post hobbyist lift, the Atlas® Garage PRO8000-EXT. Perfect for the customer with too many cars and not enough space. The APEX8 allows the user to easily double their space by stacking most passenger cars.
The Atlas® APEX8-EXT is designed and built for use by homeowners or restoration shops. This lift is not recommended for use in commercial repair shops where it would be raised and lowered several times per day.
The Atlas® APEX8 is nearly 200 lbs. heavier than comparable lifts in the market. It includes a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. With those features and with the added peace of mind of the ALI Certification the APEX8 is one of the best values in our four-post hobbyist product line.
HIGHLIGHTS
- ALI Certified
- 8,000 lb. Capacity
- Atlas Powder Coat Finish
- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Anchor Bolts Optional (Sold Separately)
- Steel Approach Ramps (Included)
- Caster Kit With Polyurethane Wheels (Included)
- Drip Trays (Included)
- Jack Trays (Not Included)
- Four Wheel Stops (Included)
- Two Rubber Wheel Chocks (Included)
- Perfect For Storing Or Working On Vehicles
- Shipping Weight: 2,072 lbs.
SPECIFICATIONS
Capacity | 8,000 LB. |
Lifting Height | |
Overall Width (Without Motor) | |
Overall Width (With Motor) | |
Length Between Columns | |
Overall Length with Approach Ramps | |
Overall Length without Approach Ramps | |
Approach Ramps | |
Total Runway Width | |
Runway Length | |
Runway Thickness | |
Width Between Runways | |
Width Between Runway Rails | |
Outside Runway to Outside Runway | |
Clearance Under Runways | |
Size of Column | |
Clearance Between Columns | |
Base of Column | |
Height of Columns | |
Maximum Wheel Base | |
Drive Thru (Outside of tire to outside of tire) | |
Cable Diameter | .350" |
Gauge Of Steel | 6 Gauge (.1875"/ 3/16" / 4.75mm) |
Motor | 110 Volt - 30 Amp Breaker is Required |
Oil Requirement | 3-5 Gallons AW32/AW46 |
Shipping Weight and Dimensions |
2,072 LB. 171.25 x 23.62 x 28.82 |
LIFT LAYOUT
All measurements are in millimeters
Warranty
"This item is warranted for five (5) years on structural components, two (2) years on hydraulic cylinders, and one (1) year on electric or air/hydraulic power units from the invoice date. Wear items are covered by a 90-day warranty. Our LIMITED warranty policy does not include a labor warranty. ATLAS Automotive Equipment is offered at highly competitive prices, allowing us to provide exceptional value. To maintain these price advantages, ATLAS does not send technicians into the field for equipment repairs. We understand that the buyers of our line of equipment are mechanically inclined or have employees that are mechanically inclined to perform essential repair services and/or maintenance. We also have a list of service technicians who can come to your location at the customer’s expense. NOTE: All warranty claims must be pre-approved by the manufacturer to be valid. The manufacturer shall repair or replace, at their option, for this period, those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used, and maintained in accordance with the manufacturer’s installation, operation, and maintenance instructions. This warranty applies to the original purchaser only and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but does not cover normal maintenance or adjustments, damage, or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted on the manufacturer’s products. THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, AND ALL SUCH IMPLIED WARRANTIES ARE EXPRESSLY EXCLUDED. The remedies described are exclusive, and in no event shall the manufacturer, nor any sales agent, distributor or other company affiliated with it or them, be liable for special, consequential, or incidental damages for the breach of or delay in the performance of this warranty. This includes, but is not limited to, loss of profit, rental or substitute equipment, or other commercial loss. The warranty shall be governed under the laws of Canada and shall be subject to the exclusive jurisdiction of the Province or Territory in which the equipment is sold into and shipped to. Prices: Prices and specifications are subject to change without notice. All orders will be invoiced at prices prevailing at the time of shipment. Prices do not include any local, Provincial, or Federal taxes where applicable. All taxes are subject to the rate at where the Atlas products are sold into or shipped to. Returns: Products may not be returned without prior written approval from the manufacturer. Due to the competitiveness of the selling price of these lifts, this warranty policy will be strictly administered and adhered to."Product Videos
Videos Hide Videos Show Videos
Custom Field
Product Reviews
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload
it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts.
If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
Contact Us
For all customer, vendor and media inquiries we encourage you to contact us VIA your preferred method:
By Phone:
Local 403.398.5020
Toll-Free 866.284.8604
Monday-Friday
8:00am-5:00pm MST
By Fax:
Toll-Free 866.398.5020
By Email:
customercare@atlasautoequipment.ca
In Person
Click here to view our locations.
8:00am - 5:00pm MST
Weekends & Holidays
Closed
NOTICE REGARDING OUR SHOWROOM
In an effort to offer our customers the highest quality products at the most competitive prices our business structure does not allow us to operate a showroom. Removing this expense is one of the many tactics we employ to ensure our customers continue to get the most cutting edge deals.
If you need clarity on specifications, product styles or if you would like more information than what we offer on our site be sure to contact us and one of our friendly customer service staff will be happy to assist you.
Shipping Information
Knowing that each customer will have unique needs when receiving their product, we strive to offer shipping solutions for every customer regardless of their location.
Please contact our friendly customer service staff toll free at 1-866-284-8604 and they will be happy to assist you in finding the most convenient and cost effective options for you to receive your order.
Both shipping and pickup options are available.
Financing
We are happy to be able to offer a financing option as a new method of payment for your purchase.
Available through a Canadian based third party company, financing can be beneficial for many reasons:
- You don't have to pay for the total price upfront
- Depending on information provided there are reasonable or even zero"down payments"
- Amortizing the purchase over a specified period allows you to make budgeted payments
- Having budgeted payments allows you to recover the cost of the machine through revenue over an extended period
- Reasonable interest rates
- Various security options
Whether you just want to make smaller payments or prefer the financing method our third party finance company will work quickly to provide you with all options available.
Their friendly approach ensures that all customers looking to finance or just exploring the possibility will receive accurate information with no hidden fees, terms or tricks.
If you would like more information on financing please contact our Customer Care Team toll free at 866.284.8604 or VIA email customercare@atlasautoequipment.ca.
We also welcome you to contact our leasing partner directly to begin the pre-approval process or to address any of your questions.
Click on the link below and you have access to a payment calculator and the ability to apply for financing online.
ATLAS AUTOMOTIVE EQUIPMENT EXTENDED WARRANTY PROGRAM – CANADA
Terms and Conditions
Atlas Automotive Equipment offers Extended Warranty Programs that reflect our confidence in the quality, reliability, and durability of the following equipment: Atlas ALI Certified Automotive Professional Grade Lifts, Commercial Grade Lifts, Hobbyist Lifts, Alignment Equipment, and Wheel Service Equipment. By purchasing Atlas Automotive Equipment, you are investing not only in top-tier equipment but also in the efficiency and long-term success of your business.
Atlas Automotive Equipment Canada offers two Extended Warranty Programs:
2-Year: BLUE 2+ Warranty
3-Year: PLATINUM 3+ Warranty
Coverage Details
1. Atlas 2 & 4-Post Lifts and Alignment Equipment
Warranty applies to parts only, including hydraulic warranty coverage for hoses, fittings, air/hydraulic pumps(*), and cylinders(*).
2-Year Extended BLUE 2+ Warranty: $395.00 per lift.
3-Year Extended PLATINUM 3+ Warranty: $495.00 per lift.
2. Atlas Wheel Service Equipment
Warranty applies to parts only, including hydraulic warranty coverage for motors(*), computers/power boards(*), transmissions, bead breakers, cylinders(*), and turntable cylinders(*).
2-Year Extended BLUE 2+ Warranty: $395.00 per unit.
3-Year Extended PLATINUM 3+ Warranty: $495.00 per unit.
3. Component Return for Warranty Claims
For warranty claims on components marked with an asterisk (*), customers are required to return the component to an Atlas Automotive Equipment location at their own expense (Calgary, AB; Vaughan, ON; Boucherville, QC) for inspection prior to Warranty credit.
If immediate replacement is required, the customer must purchase the component, and if it is determined that the failure is due to a manufacturer defect (and not lack of maintenance or water in the system), the customer will be credited the cost.
Warranty Limitations
All Factory Warranty and Extended BLUE 2+ and PLATINUM 3+ Warranties cover the replacement of defective parts only. Labor, maintenance, and service calls are not included or implied.
Wearable consumable parts or parts requiring regular maintenance (e.g., pullies, cables,Etc) are excluded from both the Factory Warranty and any Extended Warranty programs.
Eligibility and Conditions
Atlas Automotive Equipment’s Extended BLUE 2+ and PLATINUM 3+ Warranties are valid within Canada and supported by a network of authorized service providers.
These warranties are non-transferable and apply only to the original purchaser. Warranties are void where prohibited by law.
To activate the Extended Warranty, customers must enroll and register the warranty within 30 days of the original equipment purchase. This applies to the equipment and any associated Atlas Equipment Accessories.
Warranties must be registered prior to the installation or use of any equipment.
The warranties apply to Canadian customers only. All prices are listed in Canadian funds, and taxes are extra where applicable.
Enrollment and Contact Information : To enroll in and register for the Extended BLUE 2+ or PLATINUM 3+ Warranty or to learn more about the Standard Manufacturer’s Factory Warranty, visit www.atlasautoequipment.ca or contact our customer support team at 1-866-284-8604.
Final Disclaimer : Wherever you are in Canada, Atlas Automotive Equipment provides expert assistance and prompt service. By choosing the Extended BLUE 2+ or PLATINUM 3+ Warranty, you are not just purchasing a warranty; you are investing in a commitment to quality, reliability, and long-term support.
