Product Description
The Atlas WB 41 is the larger model of our extremely popular Atlas WB-11. The Atlas WB 41 is designed for those shops balancing 10-50 sets of passenger tires per day.
The Atlas WB-41 is a self-calibrating computer wheel balancer. There is no need to calibrate the balancer each morning when you turn it on.
The Atlas WB-41 has several different wheel weight positioning modes that allow the operator to the spin the wheel assembly one time and identify several different weight positions with just a touch of the button. The Atlas WB-41 uses the most up to date (Atlas exclusive) software to ensure accurate out of balance measurements.

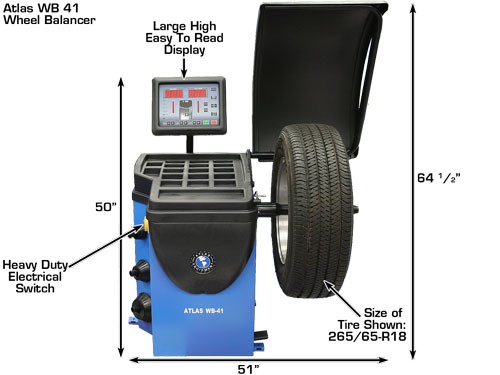

The extra large raised LED display panel and increased wheel weight tray capacity make the Atlas WB-41 computer wheel balancer the perfect choice for the professional tire dealer.
Many custom wheel owners want their stick on wheel weights to be applied only to the inside of the rim, and the Atlas WB-41 shows the operator exactly how much weight is required and where to apply the weight on the inside of the rim with just one spin. Conventional steel wheels require a clip on weight to be attached to the outside and the inside of the rim. The Atlas WB-41 can automatically calculate where the weights need to be placed with just the touch of a button.
The Atlas WB-41 is very a simple, yet sophisticated wheel balancer. Each electrical component part is virtually " plug and play " so repair is easy when it is time to replace parts. The Atlas WB-41 is capable of self-diagnosing problems and displays error codes so the operator can make the necessary adjustments or repairs in his own shop. There is no need to wait for the high priced service technician to visit your store. The simplicity of the Atlas WB-41, both in ease of use and ease of repair, make this balancer the perfect choice for your professional tire shop.
The Atlas WB 41 wheel balancer balances wheels that weigh up to 130 LB. Many balancers claim that they have 150 lb wheel capacity. There is a BIG difference between the shaft being able to support a 150 lb wheel assembly and the balancer being able to accurately balance the 150 lb. wheel assembly.
Most computer wheel balancers are not made in North America. Most Big Name wheel balancer companies have one or several models of their computer wheel balancers line made in China. Famous brand names such as Hunter ® wheel balancers, Corghi ® wheel balancers, Accu-Turn ® wheel balancers, Snap-On ® wheel balancers, Hofmann Wheel balancers ®, Ranger ® wheel balancers, and many other computer balancers manufacturers do business either directly or indirectly with Chinese manufacturers.
Many people believe that only the top quality computer wheel balancers and tire changers are manufactured in Italy. Many so-called Italian tire changers and Italian computer wheel balancers are SHIPPED to North America from Italy...but are actually made in China. We do business directly with many of the same Chinese factories that private label for the Italian " manufacturers " . Atlas Automotive Equipment of CANADA sells the same quality equipment, but at a huge price difference.
We are proud to provide similar equipment as some of the Big Name Brands but without the Big Name Price. We know where our equipment is made and have visited the factories and suppliers in China. Most sales people of the Big Name Brand distributors have no idea where there equipment is made. These sales people have never been to any factory that makes computer wheel balancers or tire changers. They only know to tell the potential customer to not buy any tire changer or wheel balancer that comes from China. Little do they know!
Benefits of our Atlas WB41 Wheel Balancer

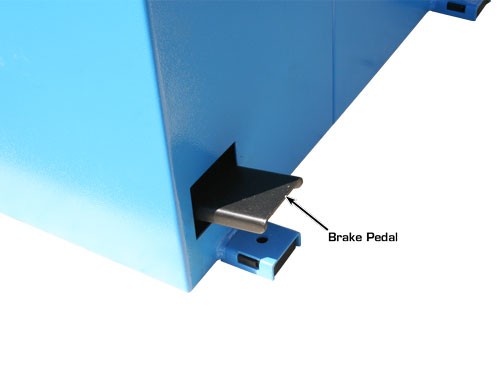

Auxiliary Brake:
The Atlas WB-41 has a foot pedal auxiliary brake that allows the operator to hold the wheel assembly in the correct position when attaching the wheel weight to the rim.
Newly Designed Computer Board:
Finally, the Atlas WB 41 uses a newly designed computer board system that makes replacement of the computer board as easy as plug and play. Many of the Asian manufacturers are using computer technology that is over ten years old. All of the Atlas balancers are implementing the newest and most reliable computer technology available. This improved technology is one of the many reasons that Atlas balancers will provide years of reliable service.
How a Wheel Balancer Works:
The computer within the balancer receives the premeasured values of wheel dimensions and responds to the output of a rotational speed sensor that monitors the rotational speed of the shaft. When the required speed is reached, the mechanical system automatically decouples the powered cranking shaft from the wheel shaft so that there can be no externally applied disturbances for the subsequent measurements of imbalance. Multiple spaced transducers along the shaft determine the wheel run-out attributable to imbalances in both the inner and outer wheel rim planes and the computer provides output signals indicative of the correct balance weight and the mounting positions of the weights on the wheel rim.
| Highlights
| |
| Specifications | |
| Max Tire Diameter | 39" |
| Rim Sizes (cars and light trucks) | 10"-32" |
| Rim Width | 1 ½"-20" |
| Shaft Size | 40mm |
| Max. Wheel Weight | 165 LBS. |
| Balancing Speed | 150 R.P.M |
| Automatic Data Entry | NO |
| Truck Adapter Set | Optional |

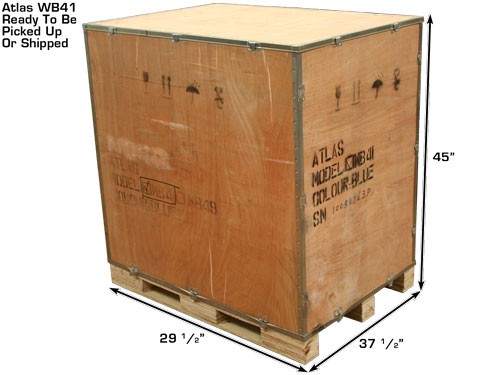

| Shipping Weight | 400 LBS. |
| Power Supply | 110V 1Ph |
| Motor | ¼ HP |
| Display | Standard or Metric |
| Accuracy | 1 g |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Warranty | 1 year limited |
Warranty
This item is warranted for one (1) year on structural components and one (1) year on air or electric hydraulic power units, pneumatic power units, cylinders, and major components from the date of invoice. Wear items are covered by a 90-day warranty. This LIMITED warranty policy does not include a labor warranty. Note: All warranty claims must be pre-approved by the manufacturer to be valid. The manufacturer shall repair or replace, at their option, any parts returned to the factory freight prepaid that prove, after inspection, to be defective. This warranty will not apply unless the product is installed, used, and maintained in accordance with the manufacturer's installation, operation, and maintenance instructions. This warranty applies to the original purchaser only and is non-transferable. The warranty covers the product to be free of defects in material and workmanship but does not cover normal maintenance, adjustments, or damage caused by improper handling, installation, abuse, misuse, negligence, or carelessness of operation, as well as normal wear and tear. Additionally, this warranty does not cover equipment when repairs or alterations have been made or attempted on the manufacturer̥s products. This warranty is exclusive and is in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or any implied warranty of fitness for a particular purpose, and all such implied warranties are expressly excluded. The remedies described are exclusive, and in no event shall the manufacturer, nor any sales agent or other company affiliated with it, be liable for special, consequential, or incidental damages for the breach of or delay in the performance of this warranty. This includes, but is not limited to, loss of profit, rental or substitute equipment, or other commercial loss. Prices: Prices and specifications are subject to change without notice. All orders will be invoiced at prices prevailing at the time of shipment. Prices do not include any local, state, or federal taxes. Returns: Products may not be returned without prior written approval from the manufacturer. Due to the competitiveness of the selling price of these lifts, this warranty policy will be strictly administered and adhered to.Product Videos
Videos Hide Videos Show Videos
-
How to Calibrate The Atlas WB41 Wheel Balancer
A walk through on how to calibrate your Atlas WB41 computer wh...
-
Atlas Spoke Support Adapter (SSA)
Greg Smith Equipment offers the Atlas spoke support adapter (S...
-
Atlas MC Kit
The Atlas MC adapter kit will allow your Atlas (passenger and ...
-
Atlas Universal Adapter For Wheel Balancers
Atlas Universal Adapter (UA) is designed for wheels that have ...
-
The Atlas MC And MCXLT Balancer Motorcycle Kits Make It Easy To Balance Motorcycle Wheels
-
Atlas MC-XLT Kit
The Atlas MC-XLT adapter kit will allow your Atlas (passenger ...
wb41_quick_startProduct Reviews
Recommended
ATLAS Spoke Support Adapter (SSA) for Wheel Balancer
ATLAS TC221 Electric/Pneumatic Wheel Clamp Tire Changer
ATLAS Truck Adapter Set (40mm Shafts) for Wheel Balancer
ATLAS Motorcycle XLT Kit for Wheel Balancer
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload
it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts.
If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
