Product Description

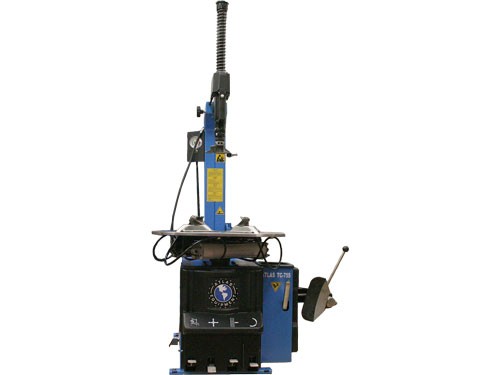

The Atlas TC755 is our "professional tire dealer" or " large car dealership " tilt back wheel clamp tire changer. The clamping range of the Atlas TC 755 allows the operator to "clamp" most 26 inch chrome rims without purchasing additional adapter sets. The optional Atlas Motorcycle/ATV Flip Adapters extend the outer clamping jaw measurement to over 32 inches.
The turntable jaws (which can be covered with the standard protective plastic inserts) hold the rim securely without damaging the surface of the rim.

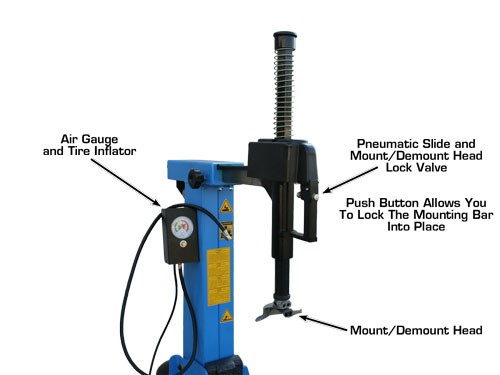

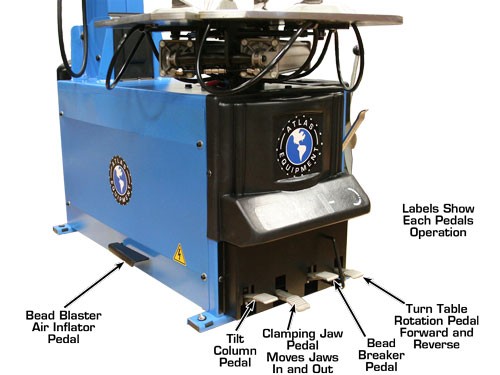

The Atlas TC 755 comes standard with an inflator hose and gauge and powerful built-in Bead Blaster to seat the beads on the most stubborn tires.
Why Buy A Tilt Back Tire Changer?

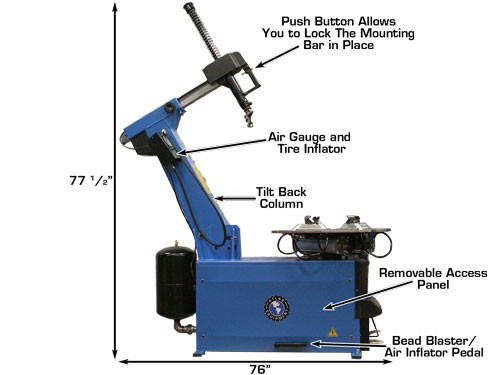

The " tilt back " feature of the Atlas 755 wheel clamp tire changer allows the turntable of the tire changer to be fully " exposed " , and will handle tire diameters of over 47 inches. If you are presently changing expensive chrome wheels; the " exposed " turntable allows the operator a larger work area and helps to prevent damage to the rim when setting the rim on the turntable.
Tilt back tire changers offer several advantages over the swing arm wheel clamp tire changers. If you are a high volume shop, the tilt back feature reduces operator fatigue because the head assembly is automatically (operator only needs to press a foot pedal) moved away when the wheel assembly is ready to be removed from the turntable. When the next wheel is placed on the turntable, the operator presses the foot pedal, and the arm swings back in to the correct position automatically.
The Atlas 755 tilt back wheel clamp tire changer is the perfect choice fo rall professional service shops that specialize in changing low-profile high performance stiff sidewall tires. The position of the mount/demount head (12 o'clock) allows the operator to stand in front of the machine with easy access to all pedals and to both assist arms (if the Atlas 755 is equipped with the DAA).
The left hand and right hand assist arms are in the perfect position to assist in the mounting and demounting of run flat tires.
Benefits of our Atlas TC755 Tire Changer
Bead Blaster:

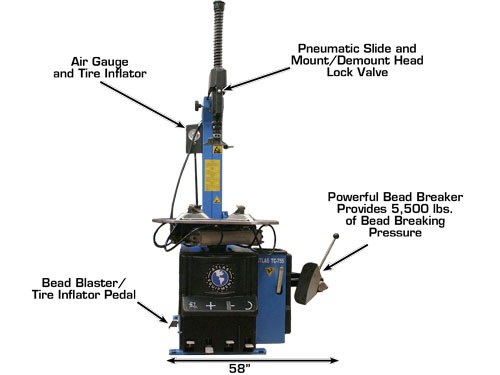

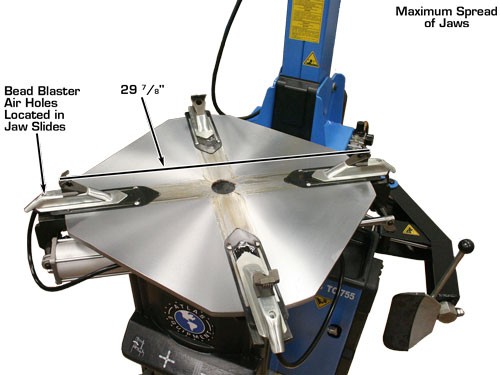

The revolutionary new Bead Blaster design on our Atlas tire changers provides an enormous amount of air pressure and volume (blasting air through the air holes positioned near the movable turntable jaws) to seat the beads on most stiff sidewall tires. This tremendous volume of air, directed to the inside cavity of the tire, forces both tire sidewalls to press solidly against the wheel so that the tire will " hold air " .

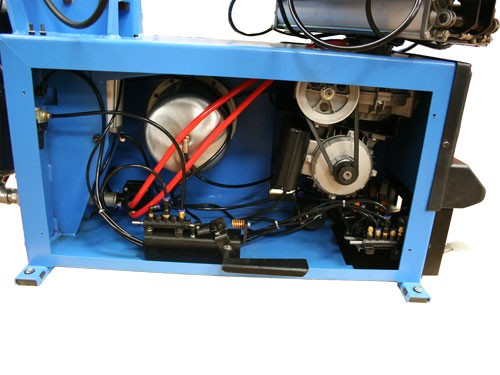

The large external air tank reservoir holds up to 75% more compressed air than most competitive tire changers. The external tank is connected to the unique valve system which utilizes an oversized hose system to deliver a huge amount of air pressure and volume in a short amount of time.
Please remember to never use more than 50 PSI when inflating the tire to seat the bead. NEVER exceed the maximum inflation pressure recommended by the tire manufacture.
Optional Adapters:
The Atlas TC 755 wheel clamp tire changer can be equipped with the Atlas Motorcycle/ATV Flip Adapters .
NOTE: The use of the Atlas Motorcycle/ATV Flip Adapters prevents the use of the air bead blast feature on this tire changer. The adapters are slid over the standard wheel clamp jaws on the tire changer table and will block the holes through which the bead blast shoots the jets of air. This means that you will not be able to use the Bead Blaster to help you reseat the bead of a tire when you are using the adapter set.
Quality:
The Atlas brand of wheel balancers and wheel clamp tire changers are designed for everyday commercial use. We have sold Accu-turn ®, Hofmann ®, Corghi ®, All-Tool ®, Beissbarth ®, and Ranger ® tire changing and wheel balancing equipment over the last 30 years we have been in business. The Atlas brand compares favorably with all these companies in quality, only the price is different.
| Highlights
| |
| Specifications | |
| Rims | Steel, Aluminum, Alloy |

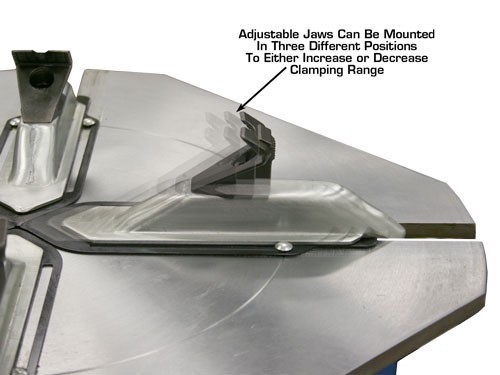

| External Locking Rim Dimension | 11 7/8" - 26" 12 7/8" - 27" 13 3/4" - 28" |
| Internal Locking Rim Dimension | 13 7/8" - 27 7/8" 14 5/8" - 28 7/8" 15 5/8" - 29 7/8" |

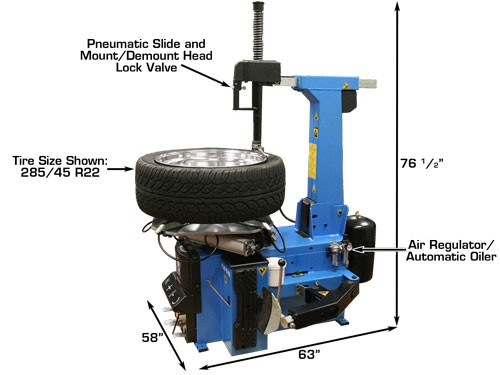

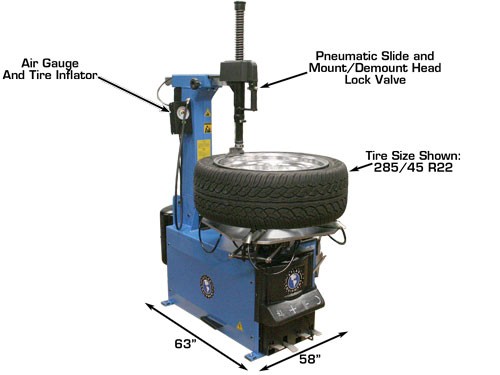

| Maximum tire diameter | 47 1/2" |
| Operating voltage | 110V 1Ph |
| Maximum wheel width (Bead Breaker) | 13 1/2" |
| Air pressure | 90 - 110 psi |

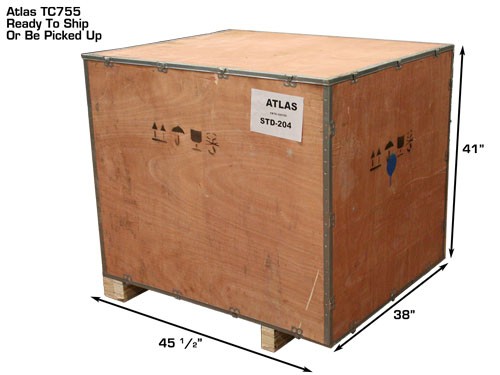

| Shipping weight | 650 LBS. |
| Wheel clamping | 4 jaws: internal/external |

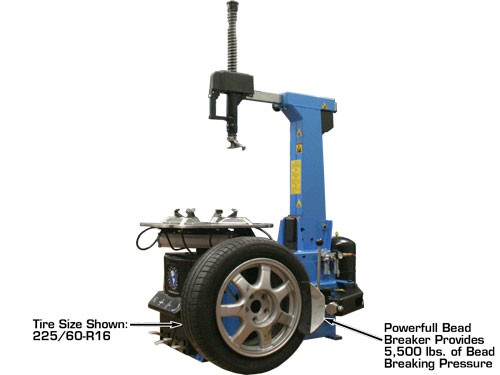

| Bead breaker | Pneumatic, 5,500 LB. force |
| Oiler, filter, regulator | Included |
| Soap reservoir | Included |
| Warranty | 1 yr. limited |
| 4 Black plastic rim protectors | Included |
Warranty
Atlas Automotive Equipment of CANADA - Atlas Tire Changer Warranty NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID. Complete Warranty and Legal Terms Atlas Automotive Equipment of CANADA offers a one year limited structural parts warranty on all Atlas tire changers. Atlas Automotive Equipment of CANADA warrants the equipment to the original purchaser against defects in material or workmanship under normal use for a period of one year from the date of purchase. This limited warranty shall be limited to the repair or replacement of materials or parts found defective, at the discretion of Atlas Automotive Equipment of CANADA. This limited one year warranty DOES NOT apply to normal wear items or to items through which compressed air passes. Airvalves, cylinders, and other moving parts that are subjected to a direct contact with the flow of compressed air are covered by a limited 90 day warranty. Our air operated parts are designed to be «powered» by well lubricated and «moisture-free» compressed air. «Dirty air» with no lubrication will cause problems with any air powered piece of equipment. If we examine a part and feel that it is a manufacturer defect; we will make sure that part is covered under warranty for 180 days. However, we will not warranty any part that has been abused, altered, or has been subjected to "dirty air". We believe that your Atlas will provide years of trouble free service, but you must provide periodic maintenance to ensure the longevity of your machine. We stock a complete parts inventory and employ several full time technical advisors that can "walk you through" most issues that may arise with your Atlas tire changer. Our limited warranty policy (one year parts only) does not include a labor warranty. Our products are sold at such a competitive price that Atlas Automotive Equipment of CANADA cannot afford to send technicians into the field to repair the Atlas tire changers. We assume that the buyer of our tire changer is mechanically inclined or has employees that are mechanically inclined. Our tire changers are built with "plug and play" parts that make repairs very easy. This is the same philosophy that the Personal Computer Industry has used for many years. Most parts can be changed in a manner of minutes. We offer a toll free number 1-888-400-5438 for service and parts information. This toll free number is directed to our Calgary, AB location. The service and parts department is open from 8 am to 5 pm MST from Monday to Friday. There are certain parts that are considered "wear items" and are NOT included in the one year limited warranty. These parts include plastic jaw protectors, plastic mount/demount head inserts, airline fittings, hoses, and clamping jaws. Cosmetic defects or blemishes that do not interfere with the functionality of the tire changer are also NOT included in the one year limited warranty. Parts that have been subjected to abuse or misuse will NOT be considered for warranty.Product Videos
Custom Field
tc755_manualProduct Reviews
Recommended
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts. If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
