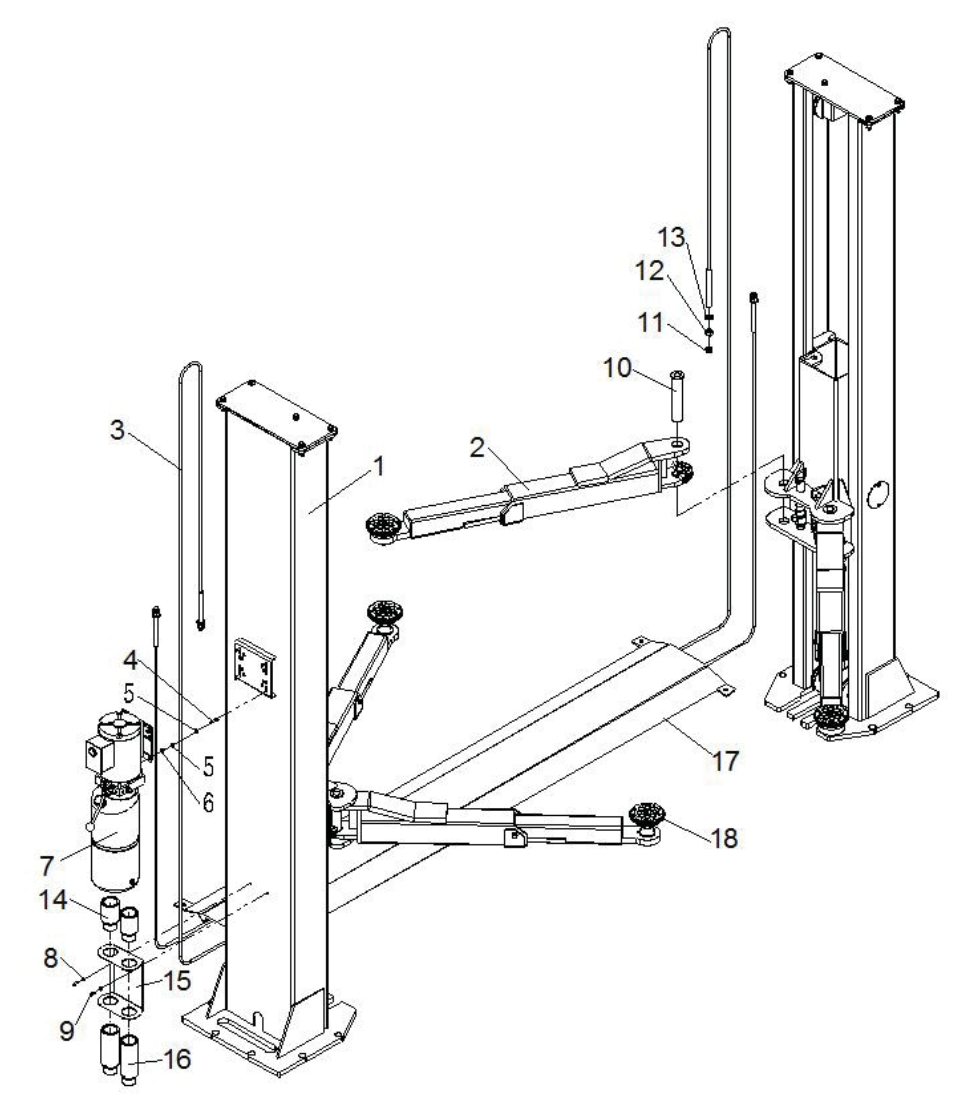

ATLAS PVL-9BP PARTS

Item#

Part number

Description

Qty

Item#

Part number

Description

1

Z11A101000

Column assembly

2

10

Z11A530100

Arm shaft

2

Z11A310000

Arm assembly

4

11

0204032

Jam nut M16

3

Z11A520100

Equalizer steel cable

2

12

0203025

Nut M16

4

0201031

Screw M8X30-Buy Parts Bag

4

13

0205020

Washer D.16

5

0205008

Washer D.8-Buy Parts Bag

8

14

Z23A601200

Pad extension H.80

6

0203029

Nut M8-Buy Parts Bag

4

15

Z23A601102

Pad extension holder

7

AL3000

Hydraulic power unit

1

16

Z23A601300

Pad extension H.155

8

0205006

Washer D.6

4

17

Z11A511000

Cover

9

0202032

Screw M6X16

4

18

Z23A313000AM

Adaptor assembly

Item#

Part number

Description

Qty

Item#

Part number

Description

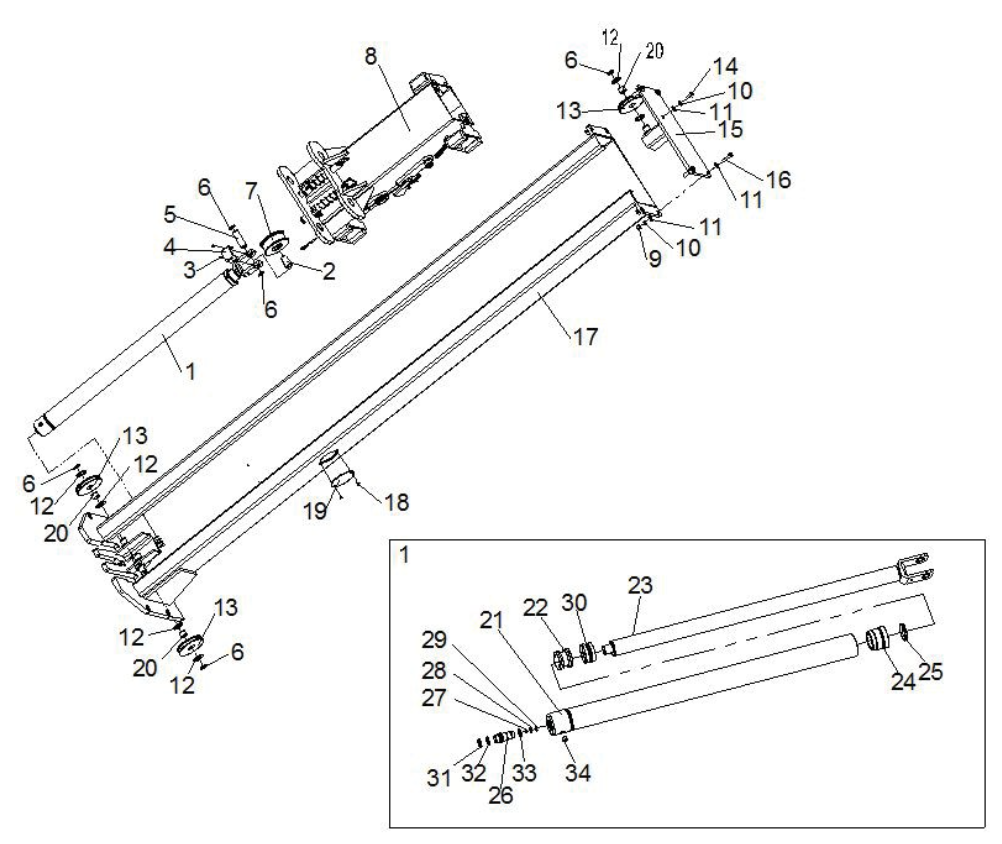

1

Z11AY63000

Hydraulic cylinder unit

1

18

0206036

Screw M6X8

2

0210011

Bush 2545/SF-1

1

19

XSZ-1-01-12

Side cover

3

0206023

Screw M4X8

2

20

0210007

Bush 2518/ SF-1

4

Z11A540102

Chain collar

1

21

Z11AY63100

Cylinder liner

5

Z11A520202

Pulley shaft

1

22

Z11AY63801 - Z11AY63000

Piston - Purchase Hydraulic Cylinder

6

0212004

Seeger D.25

5

23

Z11AY63200

Cylinder shaft

7

Z11A520201

Chain pulley

1

24

Z11AY63802

Cylinder guiding cover

8

Z11A201000

Carriage assembly

1

25

0311010

Scraper 50X58X5/6.5

9

0203013

Nut M12

4

26

Z11AY63808

Restrictor body

10

0208009

Locking washer D.12-Buy Parts bag

5

27

Z11AY63807

Restrictor

11

0205013

Washer D.12-Buy Parts bag

9

28

Z11AY63806

Spacer

12

Z11A130101

Washer

6

29

0211025

Seeger D.19

13

XSZ-1-02-11

Cable pulley

3

30

0312012

Gasket 63X47X18.4

14

0201074

Screw M12X30

1

31

0309025

O-ring 30X3.1

15

Z11A120000

Top plate

1

32

0309124

O-ring 25X1.8

16

0201126

Screw M12X50

4

33

0309022

O-ring 24X2.4

17

Z11A110000

Column weldment

1

34

0305020

Plug 3/8

Item#

Part number

Description

Item#

Part number

Description

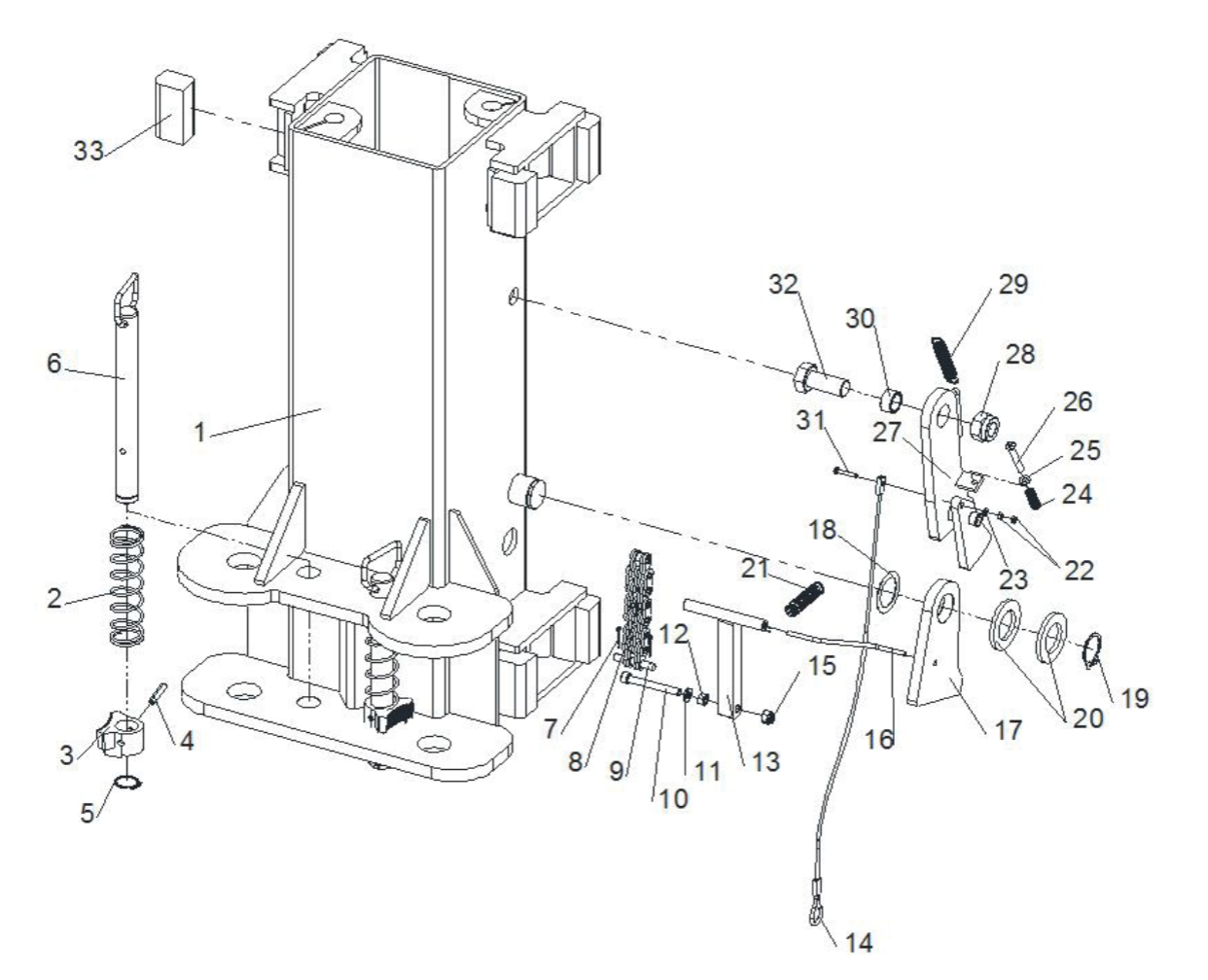

1

Z11A210100

Carriage weldment

18

Z11A221003

Spacer

2

Z23A200005

Spring

19

0212022

Seeger D.35

3

Z23A200003

Toothed gear

20

Z11A221004

Spacer

4

0213052

Elastic pin 6X40

21

Z11A221005

Spring

5

0212004

Seeger D.25

22

0203002

Nut M4

6

Z11A231100

Arm lock release pin

23

0205002

Washer D.4

7

0213044

Split pin 2X20

24

XSZ-6-3

Spring

8

0215111

Chain 644X121

25

0205006

Washer D.6

9

0215111-02

Chain pin

26

0207015

Screw M6X50

10

0202128

Screw M8X65

27

XSZ-5

Lock latch

11

0205008

Washer D.8

28

0204027

Self-locking nut M20

12

0203029

Nut M8

29

XSZ-6-1

Spring

13

Z11A221100

Chain lock lever

30

XSZ-6-2

Bush

14

Z11A221300

Lock release wire

31

0206017

Screw M4X25

15

0204004

Self-locking nut M8

32

0201110

Screw M20X45

16

Z11A221002

Connection rod

33

Z11A241101

Slider

17

Z11A221001

Chain lock latch

Item#

Part number

Description

Item#

Part number

Description

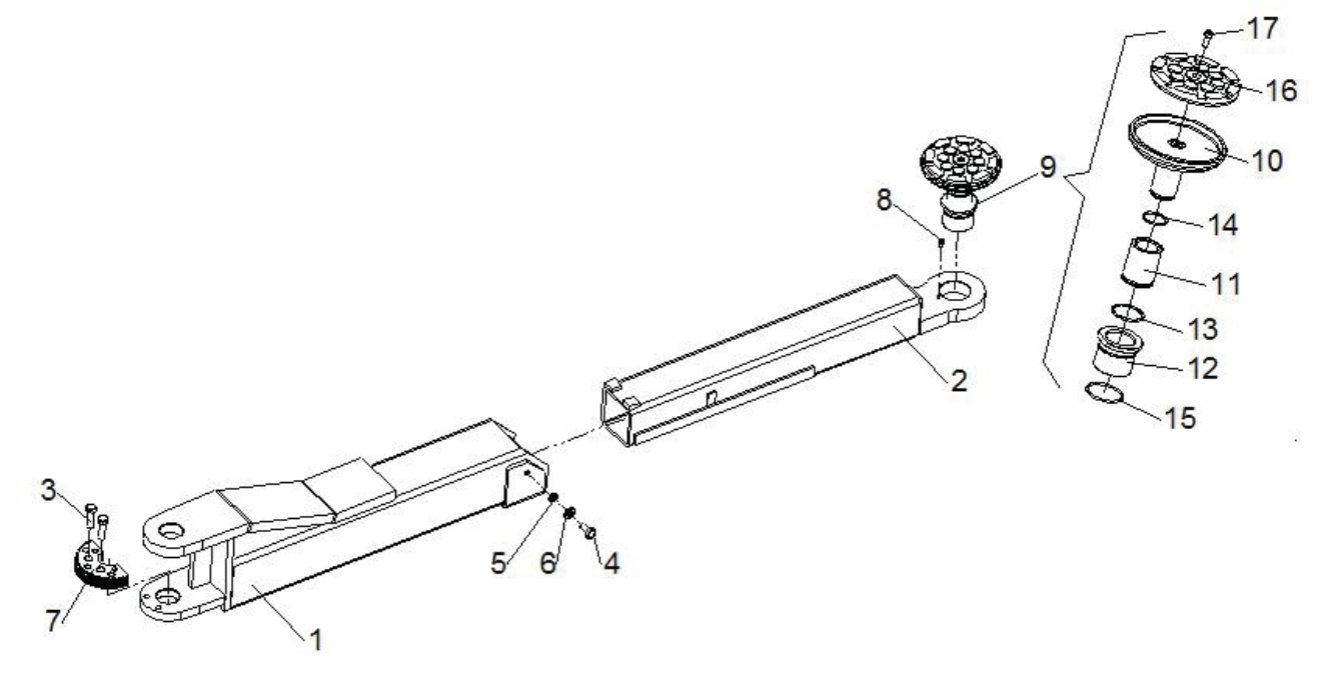

1

Z11A311000

Arm frame

10

Z23A313100AM

Pad support

2

Z11A312000

Telescopic arm

11

Z23A313001

Inner thread bush

3

0201050

Screw M10X35

12

Z23A313002

Outer thread bush

4

0201046

Screw M10X20

13

0212034

Seeger D.42

5

0208007

Locking washer D.10

14

0212035

Seeger D.32

6

0205011

Washer D.10

15

0309091

O-ring 45X2.65

7

Z23A310001

Anti-rotating gear

16

Z23A313202

Round rubber pad

8

0202020

Screw M5X8

17

0202032

Screw M6X16

9

Z23A313000AM

Adaptor assembly

Item#

Part number

Description

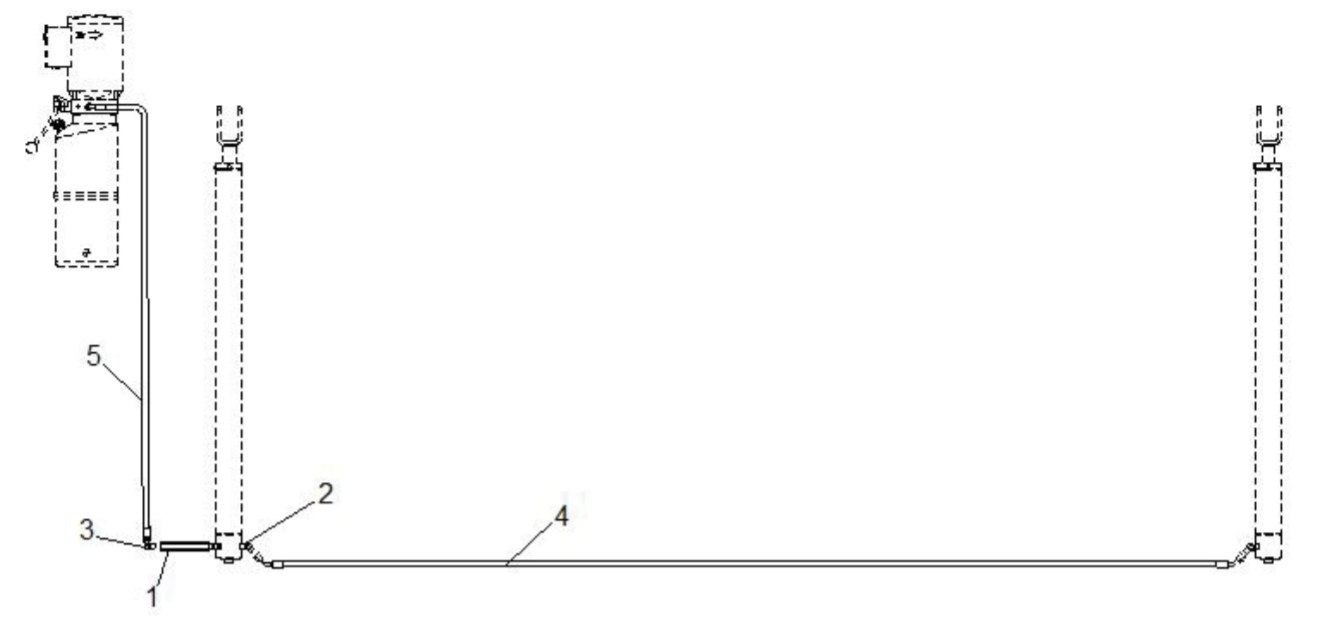

1

BZ-JT-015

Cylinder union

2

0303037

45° fitting 1/4

3

0303002

90° fitting 1/4

4

XX2800

Hydraulic hose 1/4 L=2800

5

ZW1580

Hydraulic hose 1/4 L=1580
