Product Description
PLEASE CLICK HERE AND READ THIS INFORMATION BEFORE OPERATING YOUR ATLAS KWIK BAY LIFT.
The Atlas Kwik Bay is a free standing 7,000 lb. capacity portable scissor lift. The Atlas Kwik Bay is the perfect lift for body shops and wheel service specialists that need extra lifting height. This portable lift easily raises a 7,000 LB. car or truck to a comfortable working height and does not require the customer to position arms under the lifting points of the car. The vehicle is driven over the scissor ramps and the operator simply positions the heavy duty rubber block assemblies under the correct lifting points. The operation is very quick and the chance for any damage to the underside of the car is minimal.
The unique open middle of the Atlas Kwik Bay allows access to many areas on the underside of the car that are not easily accessible with other portable mid-rise lifts employing a full superstructure.
The dual power cylinders and the solid safety lock bars make the Atlas Kwik Bay one of the most versatile and easy to use scissor mid-rise lifts sold in the USA and Canada.

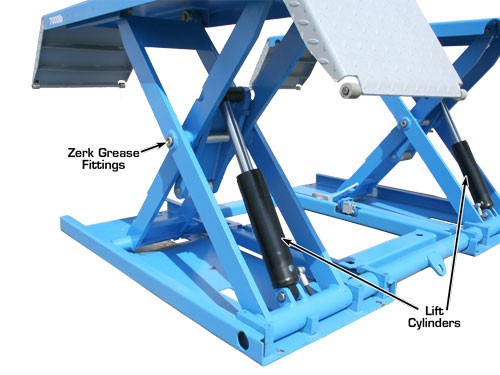

Each hinge point has a zerk grease fitting to allow maximum lubrication to each joint.

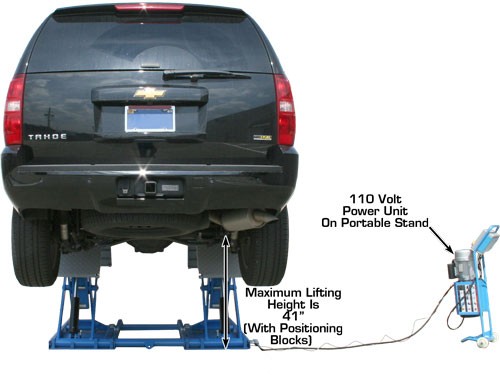

Our Atlas Kwik Bay has been thoroughly tested to meet Industry standards. The Atlas Kwik Bay scissor mid-rise lift is powered by a 110 volt power unit that is mounted on a movable cart. The power unit can be remotely located near the lift for maximum efficiency. This cart is also used to move the Atlas Kwik Bay on a smooth surface. The lift can be rolled to and from an inside work bay to an outside concrete apron work area.
The Atlas Kwik Bay is the ultimate scissor mid-rise lift that includes one set (4) of positioning blocks.

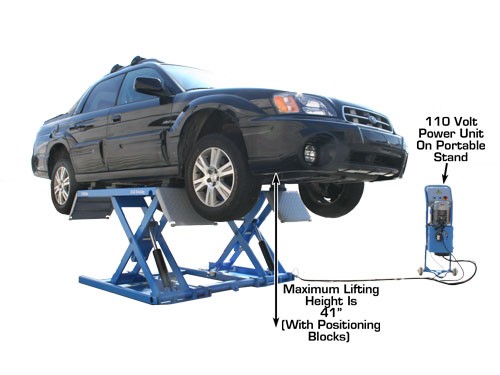

The large “foot print” of the Atlas Kwik Bay creates a steady platform for any raised vehicle. The Atlas Kwik Bay has a lifting height of over 39” and remains rock solid at all safety lock positions.
Electrical Requirement
The electric motor for the power unit requires 110 Volt (single phase) 60 Hz. We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit has a short pigtail (no plug) that can be wired to either a quick disconnect box (mounted on the lift column) or to a male/female plug combination.
Highlights
| |
Specifications | |
Capacity | 7,000 LB. |
Maximum Lifting Height | 41" (With positioning blocks) |
Minimum Lifting Height | 4 ¼" |
Overall Dimensions | 77 ½" (6' 5 ½") L x 72" (6') W |
Platform Dimensions | 57 1/2" (4' 9 1/2") L x 19 ¼" (1' 7 ¼") W |
Ramps | 10 ¼" x 19 ¼" |
Between Runways | 33 ½" (2' 9 ½") |
Air Requirement | 85-120 psi. |
Motor/Electrical Requirement | 120 volt single (1) phase A 30 amp breaker is required. |
Oil Requirement | 3.5 Gallons AW32/AW46 |
Shipping Weight | 1,215 LB. |
Warranty
Some Atlas Low Rise and Mid Rise Lifts (weight capacity 6,600 lbs. or less) are warranted for two (2) years on structural components and two (2) years on hydraulic power units and cylinders from invoice date. Wear items carry a 90 day warranty. NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID. The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions. This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer’s products. Cosmetic defects or blemishes that do not interfere with the functionality of the portable scissor lift are also NOT included in the two year limited warranty. The remedies described are exclusive and in no event shall Atlas Automotive Equipment of CANADA or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. PLEASE NOTE: Registration of the vehicle lift is required to receive the warranty coverage.Product Videos
Videos Hide Videos Show Videos
Product Reviews
You May Also Like...
Product Assembly & Setup
Selling automotive equipment we have found that most of our customers are mechanically minded and look forward to settting up and assembling their new purchase. Most items we offer can be setup and assembled by two people within a reasonable time frame. Before tackling this project here are a few tips that we think will make your life a little bit easier:
- Review the manually fully before you begin setup. The manual should be included with your item but if you cannot locate it simply go to the product page on our website and download it for FREE. This manual has been put together and maintained over the years and will include all the tricks we have learned to make the assembly of your as seamless as possible
- Don't like reading or don't need the manual? That's fine, but maybe take a minute and check out the videos we have posted on each of the product pages. We understand that some people have the ability to problem solve on their own but why not get the inside information so you can spend less time having to problem solve?
- If you haven't already received your item, get an uderstanding of you will need to transport or unload it. Shop equipment like tire changers and wheel balancers are a dream to handle compared to car lifts. If you are assembling your car lift take time to plan our your install.
- Start by making sure the install location and area(s) surrounding it are clean and clear making it easy for you to move around and manipulate the pieces.
- Try to get the entire crate close to the install area without impeding it. There are some heavy pieces that need to be moved into place and the less you have to move them the better.
- Disassemble the packaging and pieces and have a look through them to ensure all pieces are there and get an idea of what each item is. You are going to need them at one point and if you have someone holding a heavy item while you search out a bolt or hose it is going to be a long day!
- If you are reading the manual, read 2-3 steps ahead of where you are at. We have heard time and time again how a customer has installed their lift to 90% only to find that a hose or cable needed to be put in place two steps earlier and now they have to essentially disassemble the lift only to put a small piece in place and then reassemble it.
- Be sure to review the electrical requirements of the product your are purchasing. Some items are supplied in either 110V or 220V. Others are manufactured so you can just plug it in while some have a "pig tail" which means you will need an electrician to either hard wire it to your panel or install a plug
- If you are assembling a car lift, you will need hydraulic fluid to make the lift work. PLEASE NOTE: we do not supply the hydraulic fluid for your lift. In general we recommend AW-32 hyraulic fluid for use in all of our car lifts (regardless of the type). A 5 gallon pale is typically more than enough and will usually leave you with a little extra
- When filling your hydraulic fluid for the first time don't rush the process. Fill the resevior to 1/3 or 1/2 and then run the lift up and down. Get the air and kinks out and then, when the lift is in the lowest position, fill it to 2/3 or 3/4 and run the lift up and down again. DO NOT fill the resevoir past 1/3 or 1/2 when the lift is in the raised position as there is flud throughout the cyclinders and other components. We have heard many times that a customer has filled the resevoir full when the lift is in the raised position and the as soon as they begin lowering the lift the resevoir becomes overfilled and spills all over the shop. This is a huge mess to clean up.
- Some hydraulic cylinders may be "air locked" from manufacturing which will not allow the piston to extend when pulled by hand. This does not mean the cyclinder is damaged, it is simply a result of the manufacturing process. To overcome this, start by ensuring that your feeder hoses to the cylinder are not connected (this would close the system and will not let air in or out). Using a ratchet strap or similar item, slowly put tension on the piston end and gently apply pressure trying to extend the piston out of the cylinder. Resistance will build up in the first couple inches of extending and then the "air lock" should break. You might get a little pop and the ratchet strap will loosen suddenly (hence the reason to apply pressure slowly) and now you should be able to extend and retract the piston by hand with little effort.
These tips are friendly suggestions from us and the years of experience we have gained working with these products. Although they don't apply to every product, every time we hope that you will take them at face value while still reviewing the other information (such as manuals and videos) we provide in regards to assembling and setting up your product. Your safety and satisfaction are our paramount concerns. If there are any questions or concerns throughout the assembly or operation process of your product please do not hesitate to contact us.
