The Atlas alignment kit is the perfect addition to your four post lift if you are considering performing two wheel or four wheel alignments in your shop. The Atlas alignment kit can be used on a variety of four post above ground lifts.

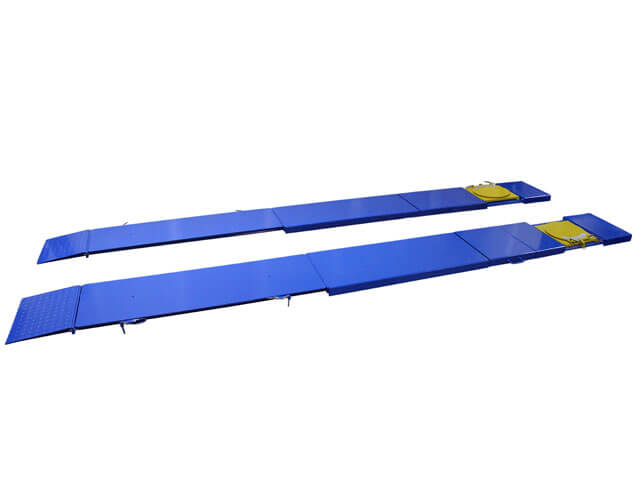

The complete alignment kit consists of a set of front turn tables with the necessary wheel stops and approach ramps. Also included is the set of heavy duty ball bearing slip plates with the necessary set of on/off approach ramps. The front turn table set and the rear slip plate kit can be permanently attached (bolted) to your four post above ground lift. Alternatively, the complete Atlas alignment kit may also be temporarily installed (not bolted) on your four post lift. The Atlas alignment kit may also be used on any level surface (i.e. concrete floor) to facilitate the use of your four wheel or two wheel computer alignment system.
The Atlas alignment kit is highly adjustable and will accommodate a variety of vehicles with different length wheel bases.
Many permanent alignment kits found on four post alignment lifts are recessed into the runways of the lift. It is very difficult to prevent dirt, chemicals, salt, and other foreign material from becoming embedded in the rolling or sliding mechanisms of the turn tables or the slip plates. The Atlas alignment kit is positioned above the runways to allow easy access for service and cleaning. Even if you permanently mount the Atlas alignment kit, it can still be removed periodically (simply remove the bolts) to allow a thorough cleaning and servicing of all moving parts.
Many customers do not want to dedicate one of their four post lifts as a permanent four post alignment lift. The versatile Atlas alignment kit can be added or removed as needed and is able to turn almost any level four post lift in the shop into an alignment lift.
- Compatible with a variety of four post above ground lifts.
- 2 Wheel Stops
- Includes slip plates and turntables
- 2 Rear Slip Plates
- 2 Turn Tables
- 6 Ramps
- Shipping Weight: 686 LBS.
|Atlas Platinum Alignment Kit|

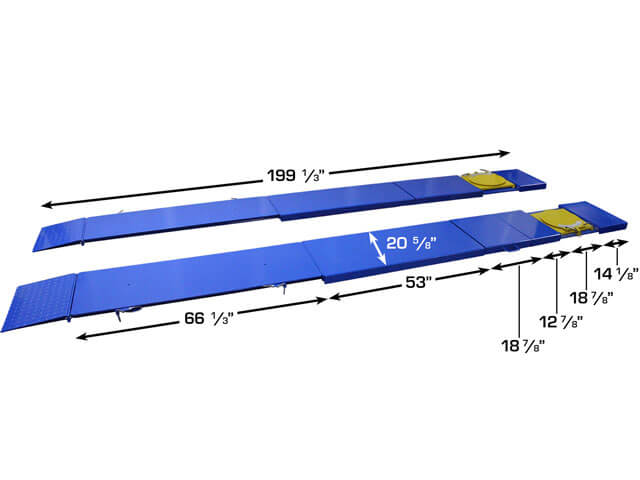

|Overall Length||199 1/3” (5062mm)|
|Overall Width||20 5/8” (524mm)|
|Min. Wheel Base||75 2/5” (1915mm)|
|Max. Wheel Base||148 2/3” (3776mm)|
|Min. Turntable Recess||1 1/2” (40mm)|
|Max. Turntable Recess||2” (50mm)|

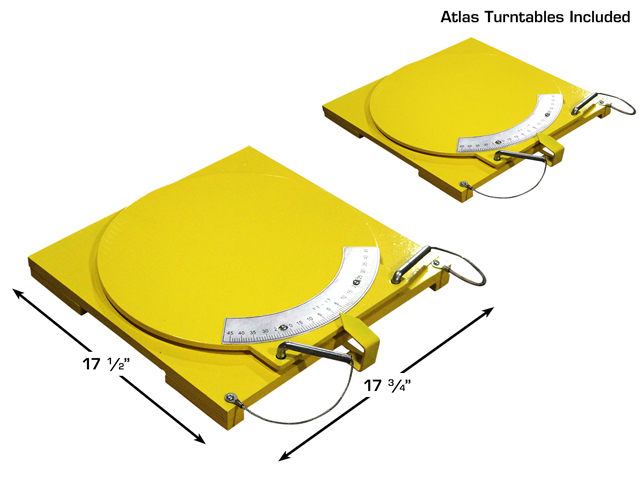

|Included Turntable Dimensions||17 ¾” x 17 ¾”|
