PVL14-Parts

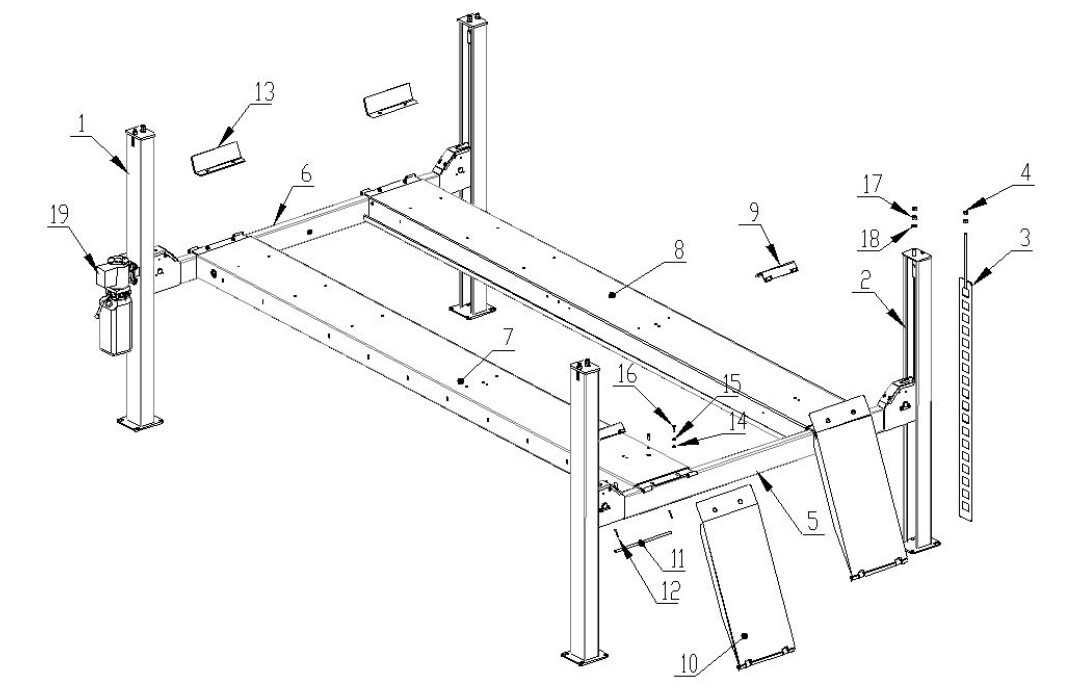

General Part List
| Item | Part number | Description | Item | Part number | Description | |
| 1 | Z72C102000 | Column A | 11 | Z72B810001 | Ramp pin | |
| 2 | Z72B110101 | Column weldment B | 12 | 0213053 | Split pin 5X45 | |
| 3 | Z72B111101 | Latch rack | 13 | Z72C310002 | Wheel stop plate | |
| 4 | 0203012 | Nut M20 - Purchase Parts Bag | 14 | 0205013 | Washer D.12 - Purchase Parts Bag | |
| 5 | Z72C210000 | Transverse beam B | 15 | 0208009 | Locking washer 12 - Purchase Parts Bag | |
| 6 | Z72C220000 | Transverse beam A | 16 | 0201220 | Screw M12X35 - Purchase Parts Bag | |
| 7 | Z72C310000 | Power-side runway | 17 | 0203012 | Nut M20 - Purchase Parts Bag | |
| 8 | Z72C321000 | Off-side runway | 18 | 0205022 | Washer D.20 - Purchase Parts Bag | |
| 9 | Z72A300100 | Wheel chock | 19 | 0302010 - Not Available | Hydraulic power unit-Not Available | |
| 10 | Z72C810000 | Drive-on ramp |

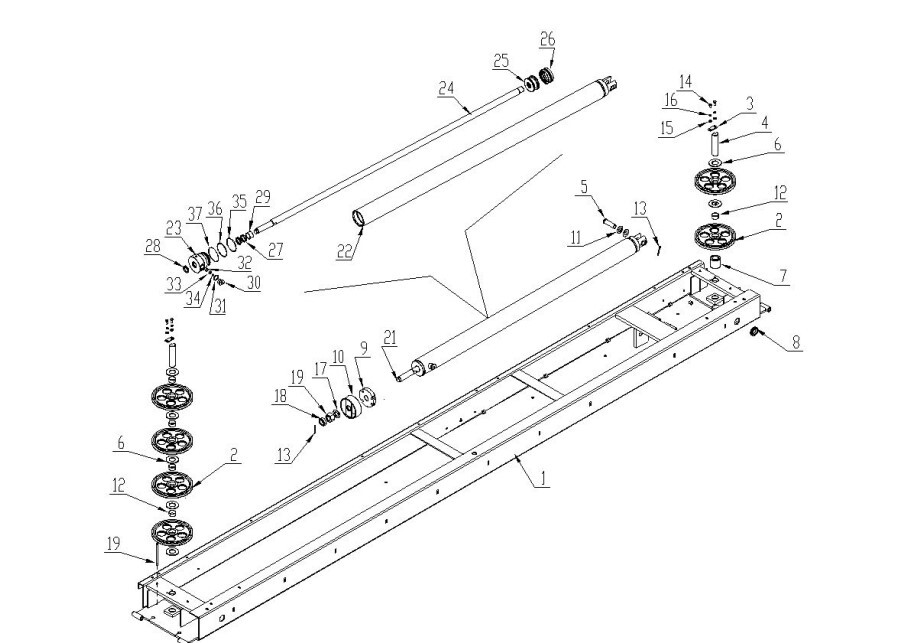

Power-Side Runway Assembly
| Item | Part number | Description | Item | Part number | Description |
| 1 | Z72C311000 | Runway weldment | 20 | Z72B310014 | Anti-derailment pin |
| 2 | Z72B210002 | Cable pulley | 21 | Z72BY90000 | Hydraulic cylinder unit |
| 3 | Z72B220005 | Fastening plate B | 22 | Z72BY90100 | Cylinder liner |
| 4 | Z72B310001 | Pulley shaft | 23 | Z72BY90001 | Guiding cover |
| 5 | Z72B310002 | Cylinder pin | 24 | Z72BY90002 | Cylinder shaft |
| 6 | Z72B310003 | Pulley spacer | 25 | Z72BY90003 | Piston |
| 7 | Z72C310001 | Spacer | 26 | 0312018 | Gasket 90X70X22.4 |
| 8 | Z72B310012 | Hose relief | 27 | 0310031 | Seal 36X46X8 |
| 9 | Z72B310100 | Cable holder | 28 | 0311016 | Scraper 36X44X5/6.5 |
| 10 | Z72B310200 | Cable retainer | 29 | 0305006 | Guiding ring 36X25X2.5 |
| 11 | Z72C311005 | Washer | 30 | Z72BY90008 | Restrictor body |
| 12 | 0210052 | Bush 4020/SF-1 | 31 | 0313076 | Washer 3/4 |
| 13 | 0213113 | Split pin 5X50 | 32 | 0313074 | Seeger D. 19 |
| 14 | 0201062 | Screw M10X20 | 33 | Z11AY63806 | Spacer |
| 15 | 0205011 | Washer D.10 | 34 | Z11AY63807 | Flow restrictor |
| 16 | 0208007 | Locking washer D.10 | 35 | 0309122 | O-ring 82.5X3.55 |
| 17 | 0205027 | Washer D.30 | 36 | 0313074 | Nylon spacer |
| 18 | 0204019 | Jam nut M33X2 | 37 | 0309123 | O-ring 90X2 |
| 19 | 0203038 | Nut M33X2 |

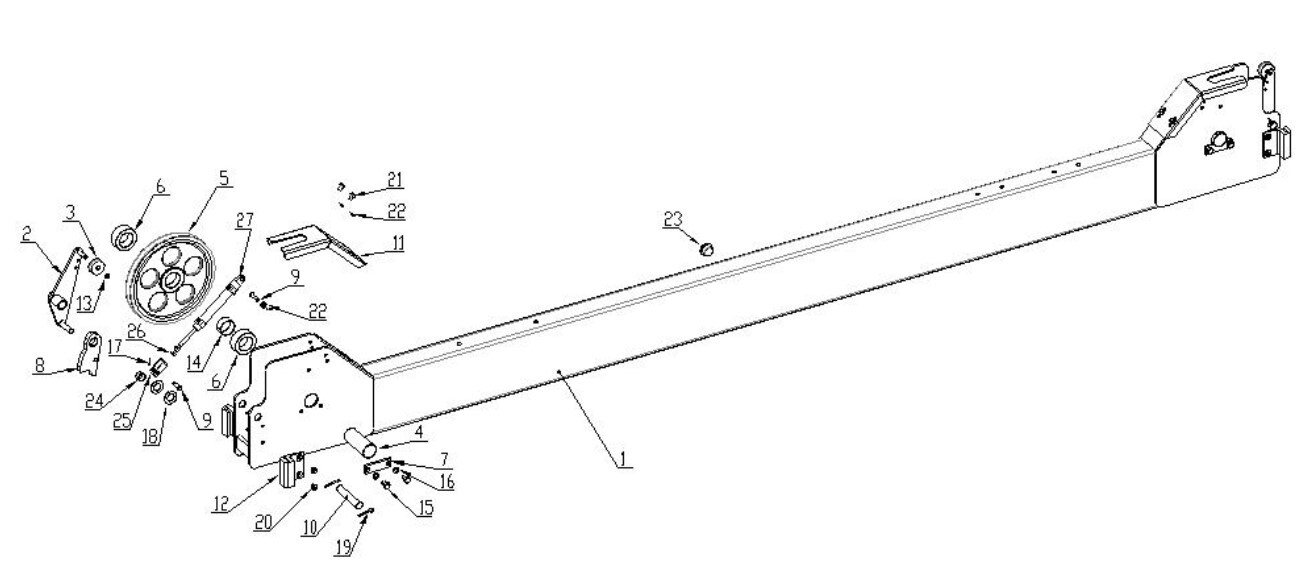

Transverse Beam A Assembly
| Item | Part number | Description | Item | Part number | Description |
| 1 | Z72B211000 | Beam A weldment | 15 | 0201059 | Screw M10X16 |
| 2 | Z72B212000 | Cable slack lever | 16 | 0208007 | Locking washer D.10 |
| 3 | Z72B210005 | Nylon roller | 17 | 0213055 | Split pin 1.6X12 |
| 4 | Z72B210001 | Pulley shaft | 18 | 0205022 | Washer D.20 - Purchase Parts Bag |
| 5 | Z72B210002 | Cable pulley | 19 | 0213035 | Split pin 4X30 |
| 6 | Z72B210003 | Nylon spacer | 20 | 0207041 | Screw M8X12 |
| 7 | Z72B210008 | Fastening plate A | 21 | 0201022 | Screw M8X12 |
| 8 | Z72B210004 | Safety latch | 22 | 0205008 | Washer D.8 - Purchase Parts Bag |
| 9 | Z72B210007 | Pin | 23 | Z72B210012 | Rubber plug |
| 10 | Z72B210006 | Latch shaft | 24 | 0210058 | Bush 2012/SF-1 |
| 11 | Z72B210010 | Pulley cover | 25 | Z72B210009 | Cylinder joint |
| 12 | Z72B210011 | Nylon slider | 26 | 0203029 | Nut M8 - Purchase Parts Bag |
| 13 | 0212013 | Seeger D. 10 | 27 | CM2C20-50TZ | Latch release cylinder |
| 14 | 0210052 | Bush 4020/SF-1 |
Transverse Beam B Assembly
| Item | Part number | Description | Item | Part number | Description | |
| 1 | Z72B221000 | Beam B weldment | 15 | 0201059 | Screw M10X16 | |
| 2 | Z72B212000 | Cable slack lever | 16 | 0208007 | Locking washer D.10 | |
| 3 | Z72B210005 | Nylon roller | 17 | 0213055 | Split pin 1.6X12 | |
| 4 | Z72B210001 | Pulley shaft | 18 | 0205022 | Washer D.20 - Purchase Parts Bag | |
| 5 | Z72B210002 | Cable pulley | 19 | 0213035 | Split pin 4X30 | |
| 6 | Z72B210003 | Nylon spacer | 20 | 0207041 | Screw M8X12 - Purchase Parts bag | |
| 7 | Z72B210008 | Fastening plate A | 21 | 0201022 | Screw M8X12 | |
| 8 | Z72B210004 | Safety latch | 22 | 0205008 | Washer D.8 - Purchase Parts Bag | |
| 9 | Z72B210007 | Pin | 23 | Z72B210012 | Rubber plug | |
| 10 | Z72B210006 | Latch shaft | 24 | 0210058 | Bush 2012/SF-1 | |
| 11 | Z72B210010 | Pulley cover | 25 | Z72B210009 | Cylinder joint | |
| 12 | Z72B210011 | Nylon slider | 26 | 0203029 | Nut M8 - Purchase Parts Bag | |
| 13 | 0212013 | Seeger D. 10 | 27 | CM2C20-50TZ | Latch release cylinder | |
| 14 | 0210052 | Bush 4020/SF-1 |

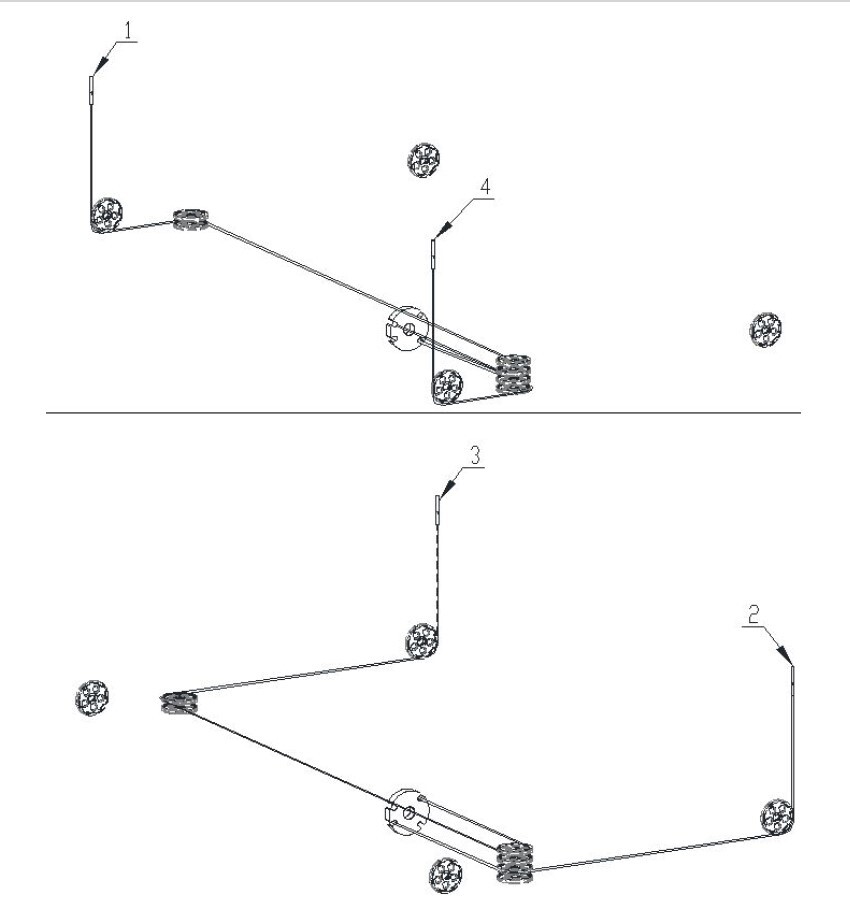

Steel Cable Assembly
| Item | Part number | Description | Item | Part number | Description |
| 1 | Z72C2850100 | Cable A L=8890 | 3 | Z72C2850300 | Cable C L=10345 |
| 2 | Z72C2850200 | Cable B L=5040 | 4 | Z72C2850400 | Cable D L=3580 |

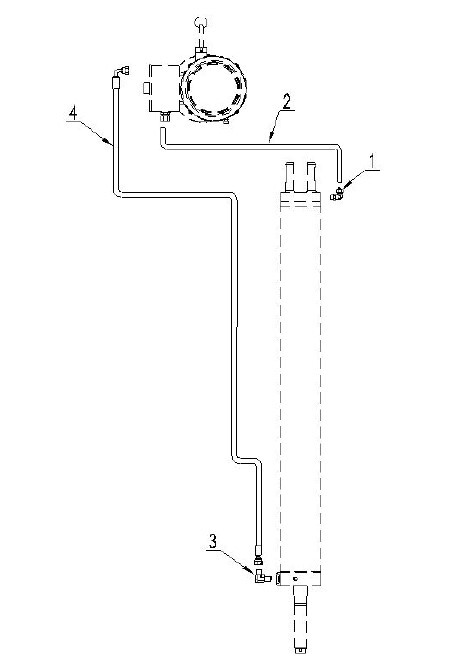

HYDRAULIC LINE
| Item | Part number | Description |
| 1 | 0306065 | Rotation union 8-1/4 |
| 2 | 0306096 | Rilsan hose 8X5.5 L=2600 |
| 3 | 0303002 | 90° fitting 1/4 |
| 4 | ZW4500 | Hydraulic hose 5/16 L=4500 |

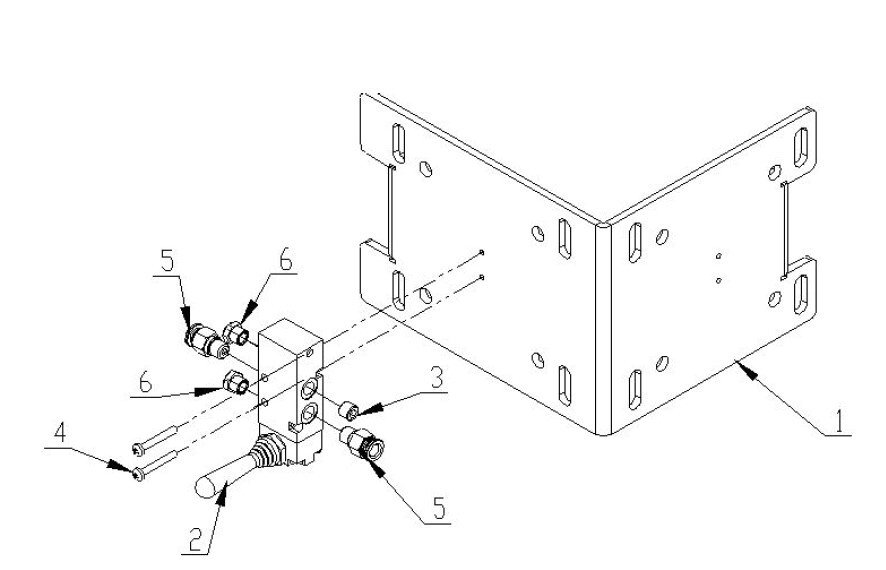

LATCH RELEASE VALVE ASSEMBLY
| Item | Part number | Description | Item | Part number | Description |
| 1 | Z72B110207 | Motor bracket | 4 | 0206018 | Screw M4X30 - Purchase Parts Bag |
| 2 | 0306258 | Air control valve | 5 | 0306045 | Quick union 8-1/8 |
| 3 | 0305014 | Plug 1/8 | 6 | 0306087 | Silencer 1/8 |

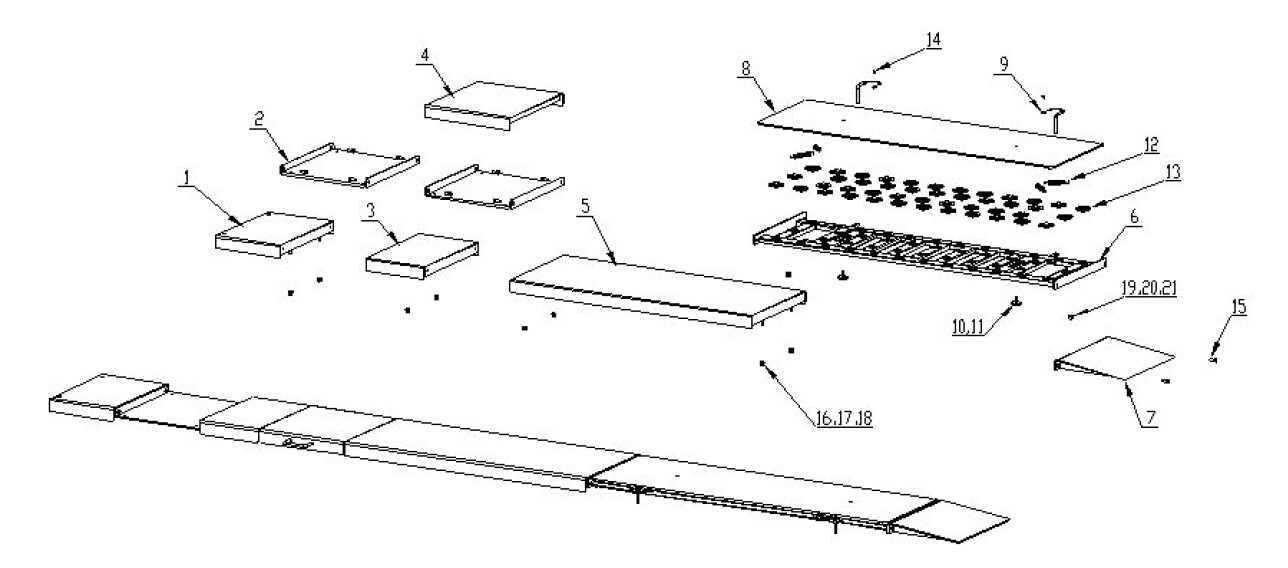

Bolt-On Alignment Kit Assembly - Optional
| Item | Part number | Description | Item | Part number | Description | |
| 1 | Z72A334000 | Spacer 1 | 12 | Z72A300004 | Spring | |
| 2 | Z72A336000 | Recess spacer | 13 | 0215087 | Steel ball bearing | |
| 3 | Z72A333000 | Spacer 2 | 14 | 0206036 | Screw M6X8 | |
| 4 | Z72A335000 | Recess cover | 15 | 0202061 | Screw M10X25 | |
| 5 | Z72A332000 | Platform cover | 16 | 0205011 | Washer D.10 | |
| 6 | Z72A338000 | Ball bearing gasket | 17 | 0208007 | Locking washer D.10 | |
| 7 | Z72A331000 | Approach ramp | 18 | 0203009 | Nut M10 | |
| 8 | Z72A337000 | Rear slipping plate | 19 | 0205013 | Washer D.12 - Purchase Parts Bag | |
| 9 | Z72A339000 | Plate stop pin | 20 | 0208009 | Locking washer D.12 - Purchase Parts Bag | |
| 10 | Z72A300003 | Washer | 21 | 0203013 | Nut M12 | |
| 11 | 0201049 | Screw M10X30 |

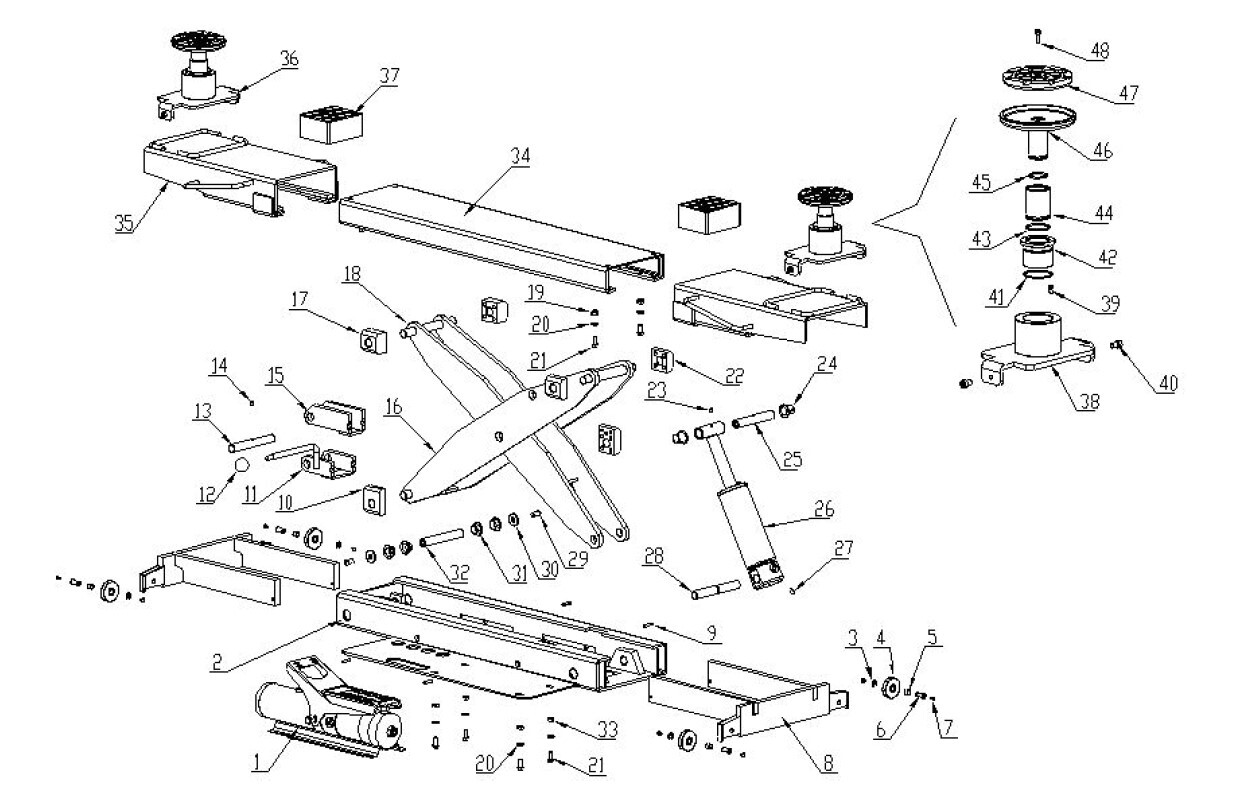

Rolling Jack Assembly - Optional
| Item | Part number | Description | Item | Part number | Description | |
| 1 | 0301030 | Air pedal pump | 25 | J07B000007 | Cylinder upper shaft | |
| 2 | J07B110000 | Jack base | 26 | J07BY63000 | Jack hydraulic cylinder | |
| 3 | 0211015 | Seeger D.8 | 27 | 0209002 | Screw M6X10 | |
| 4 | J07B100100 | Wheel | 28 | J07B000006 | Cylinder lower shaft | |
| 5 | 0511172 | Nylon bush 1010 | 29 | 0206069 | Screw M10X20 | |
| 6 | J07B100001 | Wheel shaft | 30 | J07B000008 | Washer | |
| 7 | 0511173 | Nylon pin | 31 | 0210086 | Bush SF-1/2012F | |
| 8 | J07B120000 | Base extension | 32 | J07B000004 | Middle shaft | |
| 9 | 0213109 | Elastic pin 6X25 | 33 | 0203008 | Nut M8 | |
| 10 | J07B000003 | Nylon lower slider | 34 | J07B400000 | Jack table | |
| 11 | J07B000200 | Safety lock 2 | 35 | J07B500000 | Table extension | |
| 12 | 0215017 | Knob M10X33 | 36 | J07B600000 | Lifting adaptor | |
| 13 | J07B000005 | Shaft | 37 | 0606033 | Rubber pad 115X100X55 | |
| 14 | 0209010 | Screw M6X10 | 38 | J07B600100 | Adaptor base | |
| 15 | J07B000100 | Safety lock 1 | 39 | 0202020 | Screw M5X8 | |
| 16 | J07B200000 | Outer scissor arm | 40 | 0202043 | Screw M8X12 | |
| 17 | J07B000001 | Nylon upper slider 1 | 41 | 0309091 | O-ring 45X2.65 | |
| 18 | J07B300000 | Inner scissor arm | 42 | Z23A313002 | Outer thread bush | |
| 19 | 0204004 | Self-locking nut M8 | 43 | 0212034 | Seeger D.42 | |
| 20 | 0205008 | Washer D.8 - Purchase Parts Bag | 44 | Z23A313001 | Inner thread bush | |
| 21 | 0201043 | Screw M8X20 | 45 | 0212035 | Seeger D.32 | |
| 22 | J07B000002 | Nylon upper slider 2 | 46 | Z23A313100 | Pad tray | |
| 23 | 0209030 | Screw M6X8 | 47 | Z23A313202 | Round rubber pad | |
| 24 | 0210089 | Bush SF-1/2024F | 48 | 0202032 | Screw M6X16 |

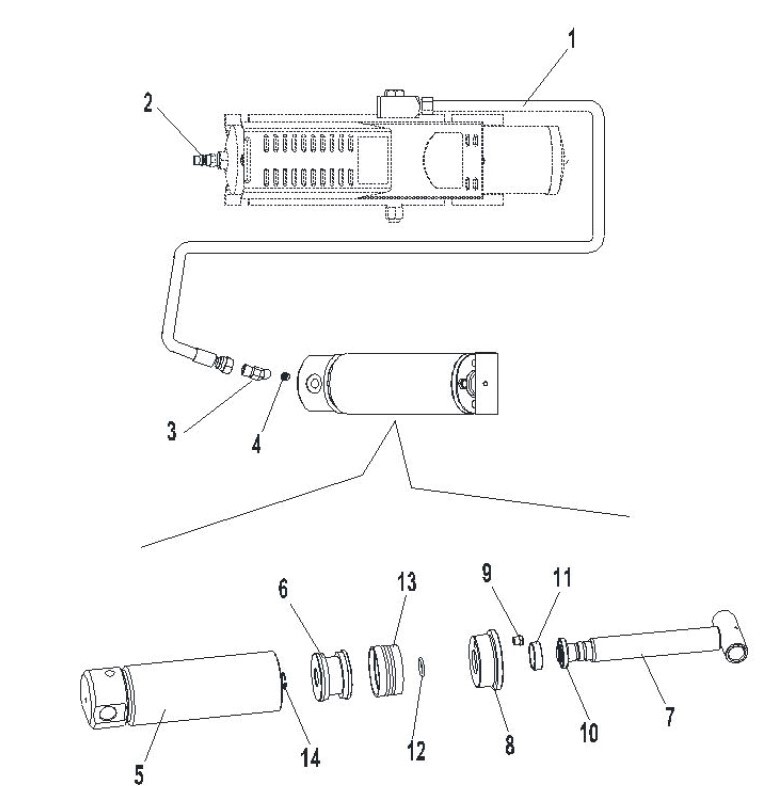

Jack Hydraulic Cylinder Unit And Line
| Item | Part number | Description | Item | Part number | Description |
| 1 | ZY1090 | Hose 1/4 L=1090 | 8 | 8240TX-63-3 | Cylinder guiding cover |
| 2 | 0306112 | Quick union 8-1/4 | 9 | 0306087 | Silencer 1/8 |
| 3 | 0303020 | 45° union | 10 | 0311005 | Scraper 30X38X5/6.5 |
| 4 | 0307022 | Parachute valve 1/4 | 11 | 0305007 | Guiding ring 30X10X2.5 |
| 5 | J07BY63100 | Cylinder liner | 12 | 0309022 | O-ring 24X2.4 |
| 6 | 8240TX-63-2 | Piston | 13 | 0312012 | Gasket 63X47X18.4 |
| 7 | J07BY63200 | Cylinder shaft | 14 | 0212005 | Seeger D.20 |
