PVL12 Parts

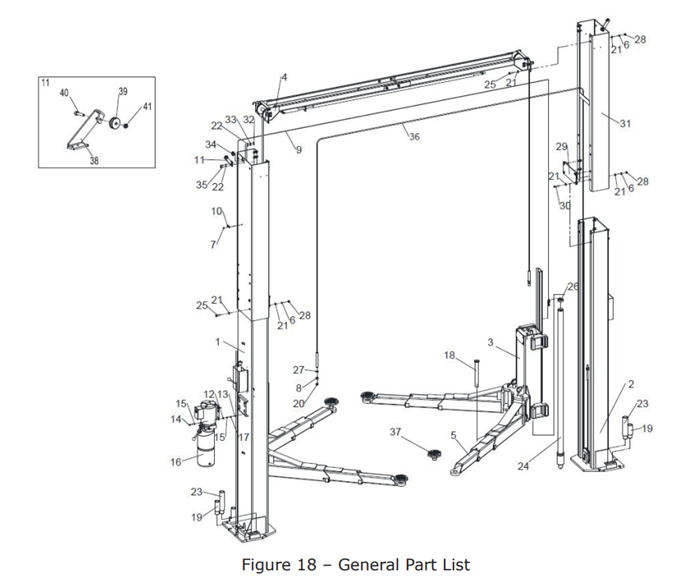

Item	Part number	Description
1	Z23G101000	Power-side column
2	Z23G102000	Off-side column
3	Z23G201000	Carriage assembly
4	Z23G410000	Overhead beam
5	Z23G320000	Arm assembly
6	0208009	Locking washer D.12 - Purchase Parts Bag
7	0206036	Screw M6X8 - Purchase Parts Bag
8	0203025	Nut M16
9	Z23G520200	Latch release wire
10	Z23G150202	Pipe clamp
11	Z23G132000	Wire roller assembly
12	Z23G150101	Rubber cushion
13	0203029	Nut M8
14	0201117	Screw M8X35
15	0205008	Washer D.8 - Buy Parts Bag
16	0302006	Hydraulic power unit
17	0208006	Locking washer D.8
18	Z23G530100	Arm shaft
19	Z23G600101	Pad extension H.114
20	0204032	Nut M16
21	0205013	Washer D.12
22	0205006	Washer D.6
23	Z23G600102	Pad extension H.216
24	Z23AY10000	Hydraulic cylinder unit
25	0201148	Screw M12X40
26	Z23G150102	Rubber cushion
27	0205020	Washer D.16
28	0203013	Nut M12
29	Z23G121100	Pulling plate
30	0201157	Screw M12X50
31	Z23G112000	Column extension

32	0203004	Nut M6
33	0208005	Locking washer D.6
34	Z23G150201	Cable relief
35	0201014	Screw M6X20
36	Z23G520100	Equalizer steel cable
37	Z23G501000	Adaptor assembly
38	Z23G132001	Roller bracket
39	Z23G132002	Latch release wire roller
40	0202034	Screw M6X25
41	0204003	Self-locking nut M6

_________________________________________________________________________________________________________________________________________________

Item

Part number

Description

Pulley shaft

Cable pulley

Column weldment

Latch cover

Lock latch

Latch release lever

Latch shaft

Return spring 2

9	Z23G140304	Spacer
10	Z23G140305	Spacer
11	Z23A110200	Cam plate
12	0201174	Screw M8X25 - Purchase Parts Bag
13	0204024	Nut M6
14	0213052	Elastic pin 6X40
15	0210007	Bush 2518/SF-1
16	0201025	Screw M8X16
17	0205008	Washer D.8 - Purchase Parts Bag
18	0208006	Locking washer D.8 - Purchase Parts Bag
19	0209028	Screw M10X16
20	0206036	Screw M6X8 - Purchase Parts Bag
21	0205006	Washer D.6 - Purchase Parts Bag
22	Z23A110007	Rubber cushion

____________________________________________________________________________________________________________________________________________________

Item

Part number

Description

Pulley shaft

Cable pulley

Column weldment

Latch cover

Wire pulley assembly

6	Z23G140101	Lock latch
7	Z23G140301	Latch shaft
8	Z23G140302	Return spring 1
9	Z23G140303	Return spring 2
10	Z23G140304	Spacer
11	Z23G140305	Spacer
12	Z23A110200	Cam plate
13	0201174	Screw M8X25 - Purchase Parts Bag
14	0204024	Nut M6
15	0213052	Elastic pin 6X40
16	0210007	Bush 2518/SF-1
17	0201025	Screw M8X16
18	0205008	Washer D.8 - Purchase Parts Bag
19	0208006	Locking washer D.8 - Purchase Parts Bag
20	0209028	Screw M10X16
21	0206032	Screw M6X16 - Purchase Parts Bag
22	0205006	Washer D.6 - Purchase Parts Bag
23	0208005	Locking washer D.6 - Purchase Parts Bag
24	0206036	Screw M6X8 - Purchase Parts Bag
25	Z23A110007	Rubber cushion
26	Z23G131001	Roller bracket
27	Z23G131002	Latch release wire roller
28	0201122	Screw M6X35
29	0204003	Self-locking nut M6

_________________________________________________________________________________________________________________________________________________

Item

Part number

Description

Carriage weldment

Slider

Arm lock release pin

Spring

Front cover

6	Z23A200003	Toothed gear
7	0213052	Elastic pin 6X40
8	0212004	Seeger D.25
9	0206036	Screw M6X8 - Purchase Parts Bag
10	Z23AY12000	Cylinder liner
11	Z23AY11002	Cylinder shaft
12	Z23AY18001	Cylinder guiding cover
13	0212036	Seeger D.48
14	0305042	Spacer 44X9.5X3
15	0310033	Seal 48X60X11
16	0305043	Spacer 48X9.5X2.5
17	0309087	O-ring 56X3.55
18	0305017	Bleeder 1/8
19	0311023	Scraper 48X56X5/6.5
20	Z23AY11001	Shaft head
21	0309088	O-ring 36.5X2.65

________________________________________________________________________________________________________________________________________________

Item	Part number	Description
1	Z23G321000	Short arm frame
2	Z23G322000	Short arm middle extension
3	Z23G323000	Short arm outer extension
4	Z23A310001	Anti-rotating gear
5	0201050	Screw M10X35
6	0201023	Screw M8X12
7	0211030	Toothed washer D.8
8	Z23G501000	Adaptor assembly
9	0205006	Washer D.6
10	XSZ-7-3-1	Rubber pad
11	Z23G501100	Pad support
12	0203004	Nut M6
13	0207013	Screw M6X30

_________________________________________________________________________________________________________________________________________________

Item	Part number	Description
1	0203004	Nut M6
2	0202032	Screw M6X16
3	Z23G410003	Spacer
4	Z23G411000	Beam A weldment
5	0208006	Locking washer D.8 - Purchase Parts Bag
6	0205008	Washer D.8 - Purchase Parts Bag
7	Z23G410004	Spacer
8	0201025	Screw M8X16
9	0203008	Nut M8
10	SP-1430-14	Overhead switch
11	0201020	Screw M8X55 - Purchase Parts Bag
12	0206032	Screw M6X16 - Purchase Parts Bag
13	2L-1-07	Safety bar support
14	Z23A400001AM	Crush safety bar
15	Z23A400002	Crush safety bar cover
16	0203013	Nut M12
17	0208009	Locking washer D.12 - Purchase Parts Bag
18	0201078	Screw M12X25

19	0205013	Washer D.12 - Purchase Parts Bag
20	SYJ30-17-02M1	Bar bracket
21	0208005	Locking washer D.6 - Purchase Parts Bag
22	Z23G413000	Restric shelf
23	0205006	Washer D.6 - Purchase Parts Bag
24	XSZ-1-02-11	Cable pulley
25	0210007	Bush 2518/SF-1
26	Z23G412000	Beam B weldment
27	Z23G410001	Pulley shaft
28	Z23G410002	Anti-rotation plate
29	0201033	Screw M8X40

___________________________________________________________________________________________________________________________________________

Item

Part number

Description

1	0303026	Tee fitting 1/4
2	ZZ11070	Hydraulic hose 3/8 L=11070
3	BZ-JT-016	Cylinder union
4	6240TJ-Y-2	Restrictor
5	6240TJ-Y-3	Spring
6	0313001	Washer 1/4
7	0303002	90° fitting 1/4
8	ZZ1270	Hydraulic hose 1/4 L=1270
